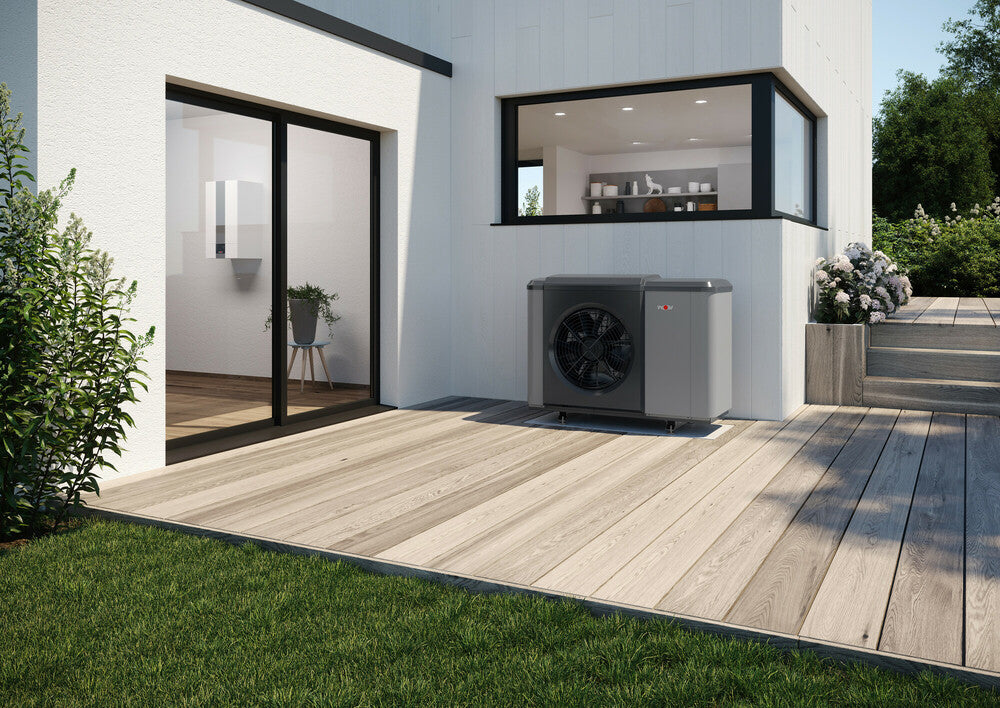

Wolf CHA lucht/water warmtepomp monobloc 7 kW, wp l/w - hydro - combi zonder boiler — SKU VM-20047313, EAN 4045013446984

Specifications

Reference
VM-20047313
Heat capacity at 7/35 °C according to EN 14511
4.5kW
COP at 7/35 °C according to EN 14511
5.47
Suitable for central heating
Yes
Ambient temperature regulation
Yes
Control type
Atmospheric condition regulation
External control required
No
Type d'optimisation
Ambient thermostat
Suitable for domestic hot water
No
Integrated domestic hot water control
Yes
Suitable for active cooling
Yes
Cooling power at 35/18°C according to EN14511
2.3kW7kW
Cooling power at 35/7° according to EN14511
1.9kW6.5kW
Suitable for pool water heating
No
Pool setting
Yes
Accumulator control regulation
Yes
Boiler control regulation
Yes
Modulating compressor
Yes
Modulation rate
23%
Refrigerant charge
3.1kg
Refrigerant type
Other
Device protection
20A
Width
1286mm
Depth
562mm
Height
979mm
Weight
152kg
Operating noise
52dB(A)
Acoustic power level (according to EN12102 at 0/35 °C)
52dB
External pressure available with system pump at nominal flow
460bar
Air temperature
40°C
Maximum start temperature of heating
75°C
Air volume
3300m³/h
Nominal flow rate of the emitter system
20l/s
Maximum service pressure emitter system
2.5bar
Diameter of outer pipe, distribution system connection
28mm
Protection class (IP)
IP24
Cascade possibility
Yes
Remote controllable
Yes
Data transfer via USB
No
Data transfer via Internet
Yes
Data transmission via bus link
Yes
Pump power type (system pump)
CA
Pump type (system pump)
Energy efficient
Type of speed regulation (system pump)
Order automatically by dT
Speed regulation, pump (system pump)
Built-in
Connection and adjustment of multiple possible emitter systems
Yes
Integrated progressive start
Yes
Limitation of maximum electrical consumption
75A
EAN code
4045013446984

Key features

  • Height: 979mm
  • Heat capacity at 7/35 °C according to EN 14511: 4.5kW
  • COP at 7/35 °C according to EN 14511: 5.47
  • Suitable for central heating: Yes
  • Ambient temperature regulation: Yes

About this product

Wolf. CHA. close-coupled. pump à chaleur air / eau. Ceci est disponible dans les variantes 7 et 10 Kw. Caracteeristiques: Peut être combiné with la centre Pac de Wolf. Élément chauffant inteegré standard de 9 kW. Réfrigérant R290. ErP Ready.

Delivery and returns

Free delivery in Belgium

Shipping in 3-6 working days when in stock

14-day right of return

Free delivery in Belgium for standard parcels. Delivered in 3-6 working days when in stock. Manufacturer warranty according to the product.

Manufacturer warranty

2 year manufacturer warranty

Minimum 2-year manufacturer warranty + Valtieri after-sales included

Secure payment

VAT invoice with every order

incl. 21% VAT · excl. 21% VAT
