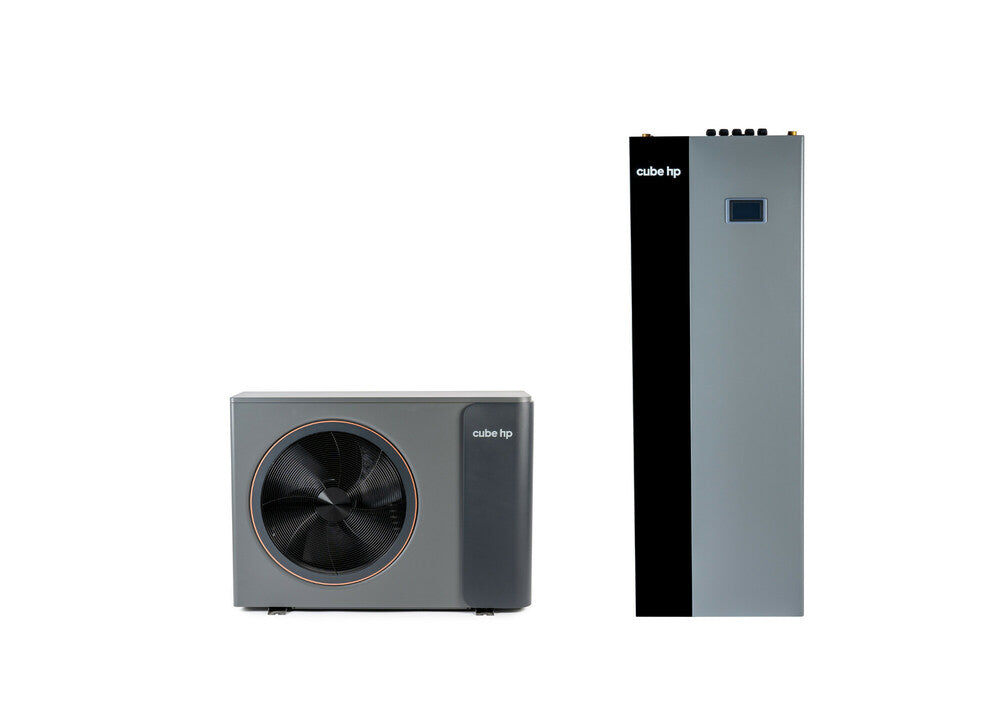

Cube HP Combi M6 lucht/water warmtepomp monoblok met 250L boiler 6,7kW mono, wp l/w - hydro - combi met boiler — SKU VM-20059301

Specifications

Reference
VM-20059301
Montage appareil
Internal and external positioning
COP at 7/35 °C according to EN 14511
4.3
Suitable for central heating
Yes
Ambient temperature regulation
Yes
Control type
Atmospheric condition regulation
External control required
Yes
Suitable for domestic hot water
Yes
Integrated domestic hot water control
Yes
Suitable for active cooling
Yes
Suitable for pool water heating
No
Pool setting
No
Accumulator control regulation
Yes
Boiler control regulation
Yes
Modulating compressor
Yes
Refrigerant charge
0.9kg
Connection voltage
220V240V
Refrigerant type
R290
Frequency
50 Hz
Width
1225mm
Depth
431mm
Height
958mm
Weight
110kg
Operating noise
55dB(A)
Air temperature
-25°C45°C
Maximum start temperature of heating
70°C
Air volume
3300m³/h
Maximum service pressure emitter system
3.1bar
Diameter of central heating thread
1 pouce externe
Protection class (IP)
IPX4
Cascade possibility
No
Remote controllable
Yes
Data transfer via USB
Yes
Data transfer via Internet
Yes
Data transmission via bus link
No
Pump power type (system pump)
CC
Pump type (system pump)
Energy efficient
Type of speed regulation (system pump)
Scaled
Connection and adjustment of multiple possible emitter systems
Yes
Integrated progressive start
Yes
Energy efficiency class room heating (811/2013/EU)
A++
Energy efficiency class water heating (811/2013/EU)
A+

Key features

  • Height: 958mm
  • Montage appareil: Internal and external positioning
  • COP at 7/35 °C according to EN 14511: 4.3
  • Suitable for central heating: Yes
  • Ambient temperature regulation: Yes

About this product

Cube. HP Combi M. Air/water heat pump. Available outputs 6 to 15 kW. Monobloc version. Supplied as standard with a high-performance 250L stainless steel cylinder and a 500W heating element for extra hot water production. Due to its low height, the unit can be installed in almost any basement. Only space at the front is needed to give proper attention to all built-in components. All connections are on the top. By preparing everything at the factory, no time or installation material is needed to still connect the cylinder, and you don't lose space or time having to install the cylinder and the indoor unit separately. The two separate heating zones are easy to set on the display at the front. The pre-set display can be easily adapted to any situation. Heating and cooling as standard without extra kits. ErP Ready.

Delivery and returns

Free delivery in Belgium

Shipping in 3-6 working days when in stock

14-day right of return

Free delivery in Belgium for standard parcels. Delivered in 3-6 working days when in stock. Manufacturer warranty according to the product.

Manufacturer warranty

2 year manufacturer warranty

Minimum 2-year manufacturer warranty + Valtieri after-sales included

Secure payment

VAT invoice with every order

incl. 21% VAT · excl. 21% VAT

You may also like

Daikin Altherma 3 M warmtepomp monobloc enkel verwarmen 4,3 kW éénfasig, pac a/e - monobloc — SKU VM-20062837, EAN 4573535184867
Daikin

Daikin Altherma 3 M heat pump monobloc heating only 4,3 kW single-phase

Ref. VM-20062837
€5.716,37 incl. VAT excl. VAT
Daikin Altherma 3 H MT buitenunit voor lucht/water warmtepomp 12kW 3-fasig, pac a/e - hydro - unité extérieure — SKU VM-20062849, EAN 4548848032303
Daikin

Daikin Altherma 3 H MT outdoor unit for air/water heat pump 12kW 3-phase

Ref. VM-20062849
€7.941,30 incl. VAT excl. VAT
Daikin Altherma 3 H HT buitenunit voor lucht/water warmtepomp 14kW 3-fasig, pac a/e - hydro - unité extérieure — SKU VM-20062861
Daikin

Daikin Altherma 3 H HT outdoor unit for air/water heat pump 14kW 3-phase

Ref. VM-20062861
€8.601,44 incl. VAT excl. VAT
De Dietrich buitenunit AWHP3R 11 MR 11,9kW monoblock monofasig R290, pompes à chaleur air / eau mono — SKU VM-20073315, EAN 3661238860360
De Dietrich

De Dietrich outdoor unit AWHP3R 11 MR 11,9kW monoblock single-phase R290

Ref. VM-20073315
€9.009,36 incl. VAT excl. VAT
Daikin Altherma 3 H MT ECH2O binnenunit warmtepomp met ECH2O-tank 477 liter, wp l/w - hydro - binnenunit met boiler — SKU VM-20062872, EAN 4548848033355
Daikin

Daikin Altherma 3 H MT ECH2O indoor unit heat pump with ECH2O-tank 477 litre

Ref. VM-20062872
€7.874,40 incl. VAT excl. VAT
Daikin Altherma 3 H HT F binnenunit warmtepomp met tank 230 liter, wp l/w - hydro - binnenunit met boiler — SKU VM-20062875, EAN 4573535171744
Daikin

Daikin Altherma 3 H HT F indoor unit heat pump with tank 230 liter

Ref. VM-20062875
€7.829,46 incl. VAT excl. VAT
De Dietrich buitenunit AWHP3R 13 MR 14,4kW monoblock monofasig R290, pompes à chaleur air / eau mono — SKU VM-20073317, EAN 3661238860384
De Dietrich

De Dietrich outdoor unit AWHP3R 13 MR 14,4kW monoblock single-phase R290

Ref. VM-20073317
€9.978,72 incl. VAT excl. VAT
Airwell

Airwell Wellea Monobloc WHPMA12-H93 air/water-heat pump 12 kW tri

Ref. VM-20052502
€9.696,72 incl. VAT excl. VAT

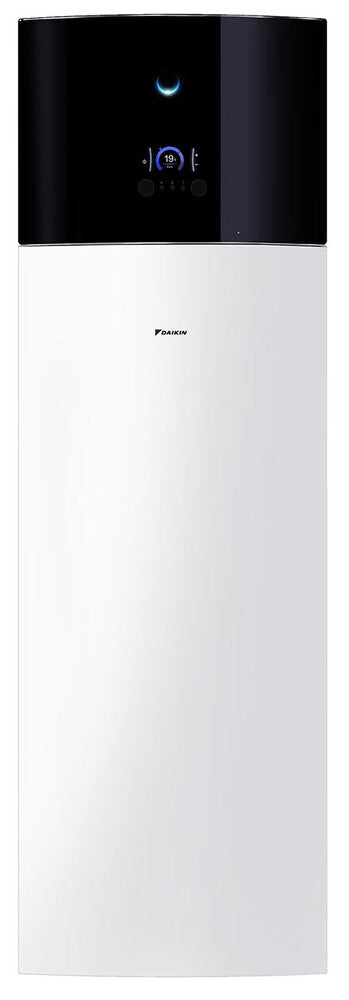

Daikin Altherma 3 H HT F binnenunit warmtepomp met tank 230 liter, wp l/w - hydro - binnenunit met boiler — SKU VM-20062877, EAN 4573535171775
