Specifications

Reference
VM-20059625
Heat capacity at 7/35 °C according to EN 14511
3.8kW
COP at 7/35 °C according to EN 14511
5.2
Suitable for central heating
Yes
Ambient temperature regulation
Yes
Control type
Atmospheric condition regulation
External control required
No
Type d'optimisation
Ambient thermostat
Integrated domestic hot water control
Yes
Suitable for active cooling
Yes
Cooling power at 35/18°C according to EN14511
4.4kW6.4kW
Suitable for pool water heating
No
Accumulator control regulation
Yes
Boiler control regulation
Yes
Modulating compressor
Yes
Refrigerant charge
1.4kg
Refrigerant type
R32
Width
1295mm
Depth
429mm
Height
718mm
Operating noise
59.8dB(A)
Maximum start temperature of heating
65°C
Protection class (IP)
IP24
Cascade possibility
Yes
Remote controllable
Yes
Data transfer via USB
No
Data transfer via Internet
Yes
Data transmission via bus link
Yes
Pump power type (system pump)
CA
Pump type (system pump)
Energy efficient
Type of speed regulation (system pump)
Order automatically by dT
Speed regulation, pump (system pump)
Built-in
Connection and adjustment of multiple possible emitter systems
Yes
Integrated progressive start
Yes
EAN code
4045013524118

Key features

  • Height: 718mm
  • Heat capacity at 7/35 °C according to EN 14511: 3.8kW
  • COP at 7/35 °C according to EN 14511: 5.2
  • Suitable for central heating: Yes
  • Ambient temperature regulation: Yes

About this product

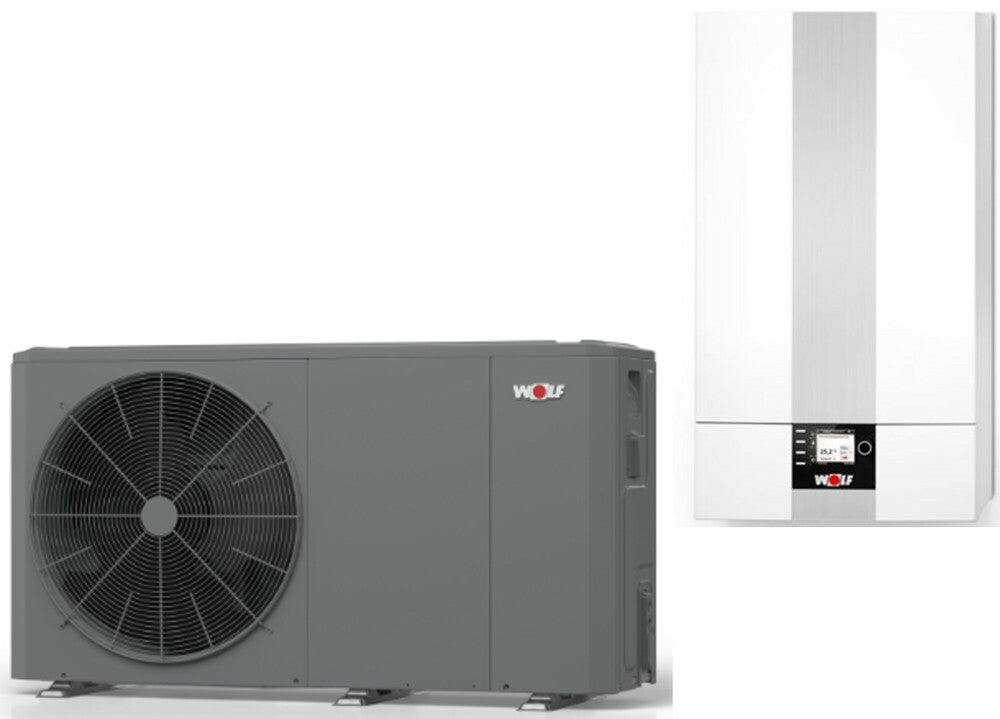

Wolf. FHA-Monoblock air/water heat pump. Indoor and outdoor unit. Various versions with a power range from 5 to 17 kW. Twin Rotary compressor with DC Inverter for all sizes to guarantee optimal dynamic balance and reduce vibrations. Continuous modulation from 40% to 120%. R32 refrigerant. Ideal for any type of installation thanks to the wide operating range, both hybrid and monovalent. The indoor unit contains the control electronics with the control of the heating circuit, the circulation pump, the electric heating element, the 3-way switching valve, the flow sensor, the pressure sensor and the safety valve (3 bar). The 3-way switching valve switches from heating or cooling mode to domestic hot water mode. All components of the refrigerant circuit are located in the outdoor unit, including those of the refrigerant circuit controller and the fan. ErP Ready.

Delivery and returns

Free delivery in Belgium from €65 excl. VAT

In stock · ships in 3-6 working days

14-day right of return

Free delivery in Belgium from €65 excl. VAT, otherwise €9.95. Delivered in 3-6 working days when in stock. Manufacturer warranty according to the product.

Manufacturer warranty

2 year manufacturer warranty

Minimum 2-year manufacturer warranty + Valtieri after-sales included

Secure payment

VAT invoice with every order

incl. 21% VAT · excl. 21% VAT
