Specifications
- Reference
- VM-20047277
- Heat capacity at 7/35 °C according to EN 14511
- 16.1kW
- COP at 7/35 °C according to EN 14511
- 5.11
- Suitable for central heating
- Yes
- Ambient temperature regulation
- Yes
- Control type
- Atmospheric condition regulation
- External control required
- Yes
- Type d'optimisation
- Ambient thermostat
- Suitable for domestic hot water
- Yes
- Integrated domestic hot water control
- Yes
- Suitable for active cooling
- Yes
- Suitable for pool water heating
- Yes
- Pool setting
- Yes
- Accumulator control regulation
- Yes
- Boiler control regulation
- Yes
- Modulating compressor
- Yes
- Modulation rate
- 25%100%
- Refrigerant charge
- 3kg
- Connection voltage
- 400V
- Refrigerant type
- R410a
- Device protection
- 13A
- Width
- 1280mm
- Depth
- 612mm
- Height
- 1165mm
- Weight
- 183kg
- Acoustic power level (according to EN12102 at 0/35 °C)
- 53dB
- Acoustic pressure level according to EN12102 at 0/35 °C and at a distance of 1 m.
- 39dB
- Air temperature
- -25°C43°C
- Maximum start temperature of heating
- 65°C
- Air volume
- 4500m³/h
- Maximum service pressure emitter system
- 4.5bar
- Diameter of outer pipe, distribution system connection
- 35mm
- Diameter of central heating thread
- 1 1/4 pouce externe
- Protection class (IP)
- IP24
- Cascade possibility
- Yes
- Remote controllable
- Yes
- Data transfer via USB
- Yes
- Data transfer via Internet
- Yes
- Data transmission via bus link
- Yes
- Pump power type (system pump)
- CA
- Pump type (system pump)
- Energy efficient
- Type of speed regulation (system pump)
- Order automatically by dT
- Speed regulation, pump (system pump)
- Built-in
- Connection and adjustment of multiple possible emitter systems
- Yes
- Integrated progressive start
- No
- Limitation of maximum electrical consumption
- 13A
- Energy efficiency of hot water
- 103%
- Energy efficiency class room heating (811/2013/EU)
- A++
- EAN code
- 7331421335703
Key features
- Height: 1165mm
- Heat capacity at 7/35 °C according to EN 14511: 16.1kW
- COP at 7/35 °C according to EN 14511: 5.11
- Suitable for central heating: Yes
- Ambient temperature regulation: Yes
About this product

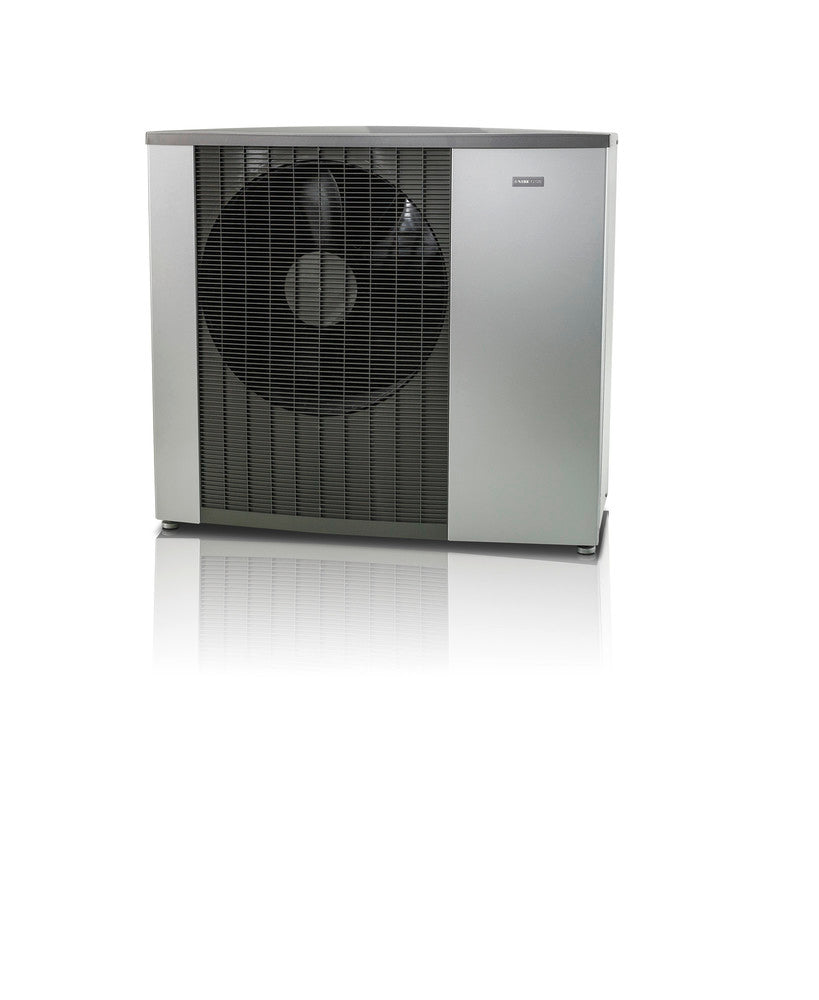

Nibe. F2120. pump à chaleur air/eau close-coupled à régulation de vitesse. La F2120 close-coupled est disponible dans les variantes 8, 12, 16 et 20 et convient for les habitations et les bâtiments non résidentiels. Une disposition en cascade jusqu'à 8 pieces est possible. La F2120 peut fonctionner en mode monovalnt (température de dépert jusqu'à 65 °C possible) et bivalent with une boiler. La F2120 possède l'option de rafraîchir, peut être combinée with diverses unitees inteerieures complètes et peut être combinée de manière très flxible with une régulation indépendante, divers accessoires et cisterns de water heater. ErP Ready.
