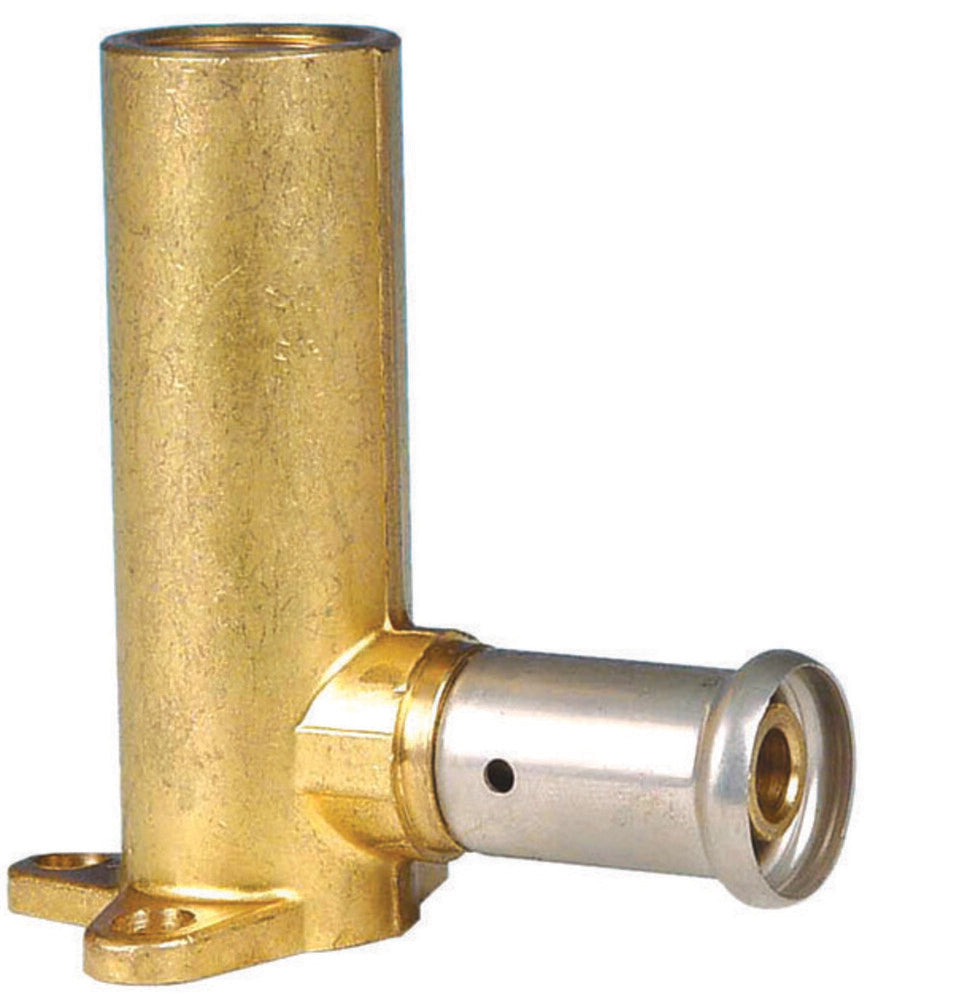

Henco doorstroom muurplaat messing D16 1/2F 78mm, multicouche-sertir: appliques culasses murales — SKU VM-20052276, EAN 5414764031050

Specifications

Reference
VM-20052276
Surface treatment
Untreated
Housing material
Brass
Shape
Right-angled
Nominal diameter connection 2
1/2 inch (15)
Outer diameter of pipe connection 1
16mm
System-bound
Yes
Outer diameter of pipe connection 2
0mm
Connection
Compression sleeve
Thread size for faucet connection
1/2 inch
Length connection 1
67mm
Length connection 2
71.5mm
Working length connection 2
54mm
Working length connection 3
0mm
Length from wall plate
78mm
Length connection 3
0mm
Maximum operating pressure at 20 °C
16bar
Average temperature (continuous operation)
-10°C70°C
Profile code
TH
DVGW quality label for gas
No
DVGW quality label for water
Yes
KIWA quality mark
Yes
QA gas equipment
No
KOMO quality mark
Yes
Approval according to BBR/EKS
No
EAN code
5414764031050

Key features

  • Surface treatment: Untreated
  • Housing material: Brass
  • Shape: Right-angled
  • Nominal diameter connection 2: 1/2 inch (15)
  • Outer diameter of pipe connection 1: 16mm

About this product

Henco. Applique wall-mounted en brass, D16, 1/2F, 78MM.

Delivery and returns

Free delivery in Belgium

Shipping in 3-6 working days when in stock

14-day right of return

Free delivery in Belgium for standard parcels. Delivered in 3-6 working days when in stock. Manufacturer warranty according to the product.

Manufacturer warranty

2 year manufacturer warranty

Minimum 2-year manufacturer warranty + Valtieri after-sales included

Secure payment

VAT invoice with every order

incl. 21% VAT · excl. 21% VAT
