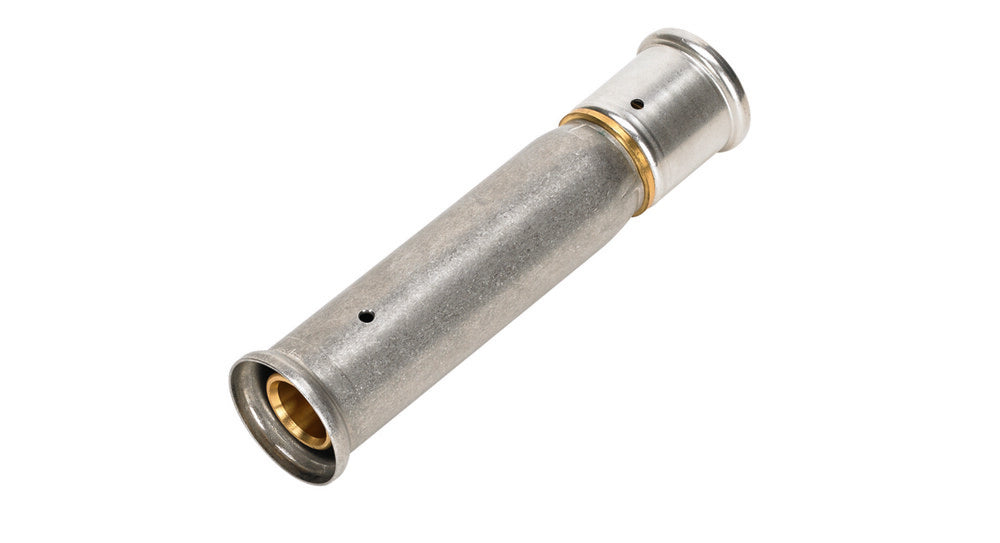

Henco reparatiemof 32-32, multicouche-sertir: coudes, manchons, raccords — SKU VM-20052985, EAN 5414764232358

Specifications

Reference
VM-20052985
Material connection 1
Brass
Material quality connection 1
CuZn40Pb2 (CW617N)
Surface treatment connection 1
Untreated
Surface protection connection 1
Untreated
Material connection 2
Brass
Surface treatment connection 2
Untreated
Material quality connection 2
CuZn40Pb2 (CW617N)
Surface protection connection 2
Untreated
Shape
Straight
Elbow radius
0mm
Eccentric
No
Reduced
No
System-bound
Yes
Nominal diameter connection 1
DN 10
Outer diameter of pipe connection 1
20mm
Connection 1
Compression sleeve
Contour code connection 1
TH
Nominal diameter connection 2
DN 10
Outer diameter of pipe connection 2
20mm
Contour code connection 2
TH
Connection 2
Compression sleeve
Sealing material
EPDM
With stop
Yes
Length
126mm
Tensile-resistant
No
Length connection 1
20.8mm
Length connection 2
99.7mm
Working length connection 1
20.8mm
Working length connection 2
99.7mm
Wrench size
0mm
Universal wrench diameter
0mm
Maximum operating pressure at 20 °C
16bar
With thermal insulation
No
Ring stiffness class
Other
With sealing material
Yes
Closed
No
With distribution valve
No
With air vent
No
FM tests
No
LPCB tests
No
UL approval
No
ULC quality label
No
VdS certified
No
DIN-CERTCO certificate
No
With TÜV approval
No
DVGW quality label for gas
No
DVGW quality label for water
Yes
QA gas equipment
No
KIWA quality mark
Yes
Approval according to BBR/EKS
No
KOMO quality mark
Yes
EAN code
5414764232358

Key features

  • Material connection 1: Brass
  • Material quality connection 1: CuZn40Pb2 (CW617N)
  • Surface treatment connection 1: Untreated
  • Surface protection connection 1: Untreated
  • Material connection 2: Brass

About this product

Henco. Repair sleeve. This fitting is the solution when you have -accidentally- made a hole in a pipe. With this slide fitting you can quickly repair this mishap. Cut out, remove the leaking pipe, connect the fitting to the 2 ends, press and done.

Delivery and returns

Free delivery in Belgium

Shipping in 3-6 working days when in stock

14-day right of return

Free delivery in Belgium for standard parcels. Delivered in 3-6 working days when in stock. Manufacturer warranty according to the product.

Manufacturer warranty

2 year manufacturer warranty

Minimum 2-year manufacturer warranty + Valtieri after-sales included

Secure payment

VAT invoice with every order

incl. 21% VAT · excl. 21% VAT
