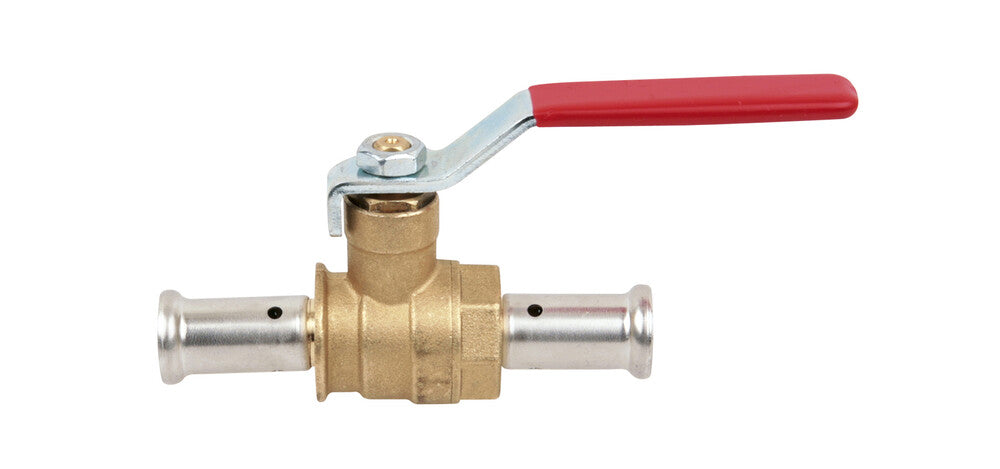

Henco bolkraan 2xpers D26, multicouche: vannes sphériques — SKU VM-20049918, EAN 5414764059382

Specifications

Reference
VM-20049918
Housing material
Brass
Material quality
CuZn40Pb2 (CW617N)
Surface protection of the enclosure
Without
Material of the spherical joint
PTFE
Material of the sphere
Brass
Surface treatment of the ball
Without
Material of the primary stem joint
PTFE
Material of the pin
Steel
Nominal diameter connection 1
DN 12
Material of the secondary stem joint
EPDM
Connection 1
Compression sleeve
Contour code connection 1
TH/BE
Outer diameter of pipe connection 1
16mm
With coupling connector 1
Yes
Nominal diameter connection 2
DN 8
Outer diameter of pipe connection 2
16mm
Connection 2
Compression sleeve
With coupling connector 2
Yes
Contour code connection 2
TH/BE
Seal
PTFE
Nominal flange pressure
Other
Nominal pressure of the item
Other
With drain opening
No
With distribution valve
No
With filter
No
With non-return valve
No
Model
Straight
With thermometer
No
With insulating shell
No
FM tests
No
UL approval
No
ULC quality label
No
LPCB tests
No
Fire-resistant
No
Maximum pressure difference at 20 °C
0bar
Average temperature (continuous operation)
70°C
Medically clean
No
Grease exempt
No
Control
Handle
Construction of the enclosure
1 piece
Fully free passage
Yes
Working length connection 1
0mm
Length connection 2
0mm
Working length connection 2
0mm
Length connection 1
0mm
Handle height
0mm
Handle length
0mm
Valve angle
0°
Wrench size
0mm
Universal wrench diameter
0mm
VdS certified
No
DVGW quality label for gas
No
DVGW quality label for water
No
KIWA quality mark
No
Approval according to BBR/EKS
No
EAN code
5414764059382

Key features

  • Housing material: Brass
  • Material quality: CuZn40Pb2 (CW617N)
  • Surface protection of the enclosure: Without
  • Material of the spherical joint: PTFE
  • Material of the sphere: Brass

About this product

Henco. valve à bille, 2 x sertir.

Delivery and returns

Free delivery in Belgium

Shipping in 3-6 working days when in stock

14-day right of return

Free delivery in Belgium for standard parcels. Delivered in 3-6 working days when in stock. Manufacturer warranty according to the product.

Manufacturer warranty

2 year manufacturer warranty

Minimum 2-year manufacturer warranty + Valtieri after-sales included

Secure payment

VAT invoice with every order

incl. 21% VAT · excl. 21% VAT
