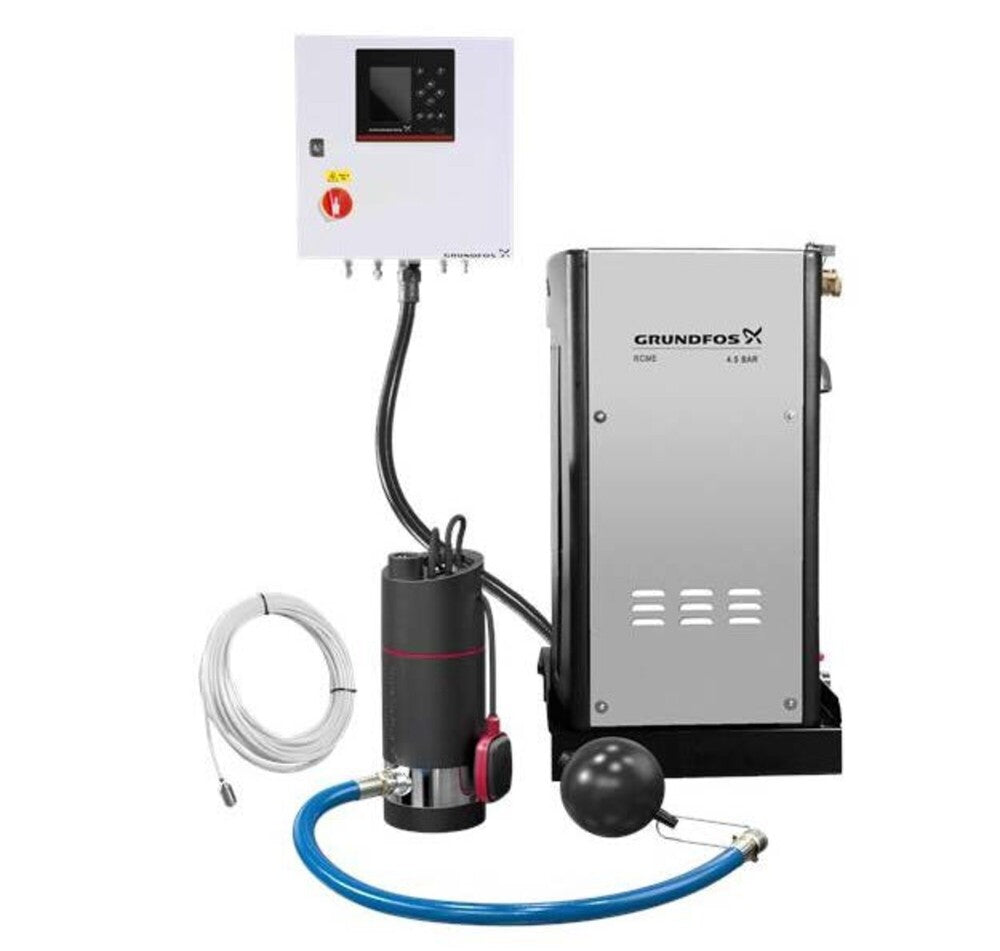

Grundfos RCME CME5-4 regenwaterhergebruik, regenwaterrecuperatiesystemen — SKU VM-20073185, EAN 5715472849082

Specifications

Reference
VM-20073185
Material of the pump housing
Stainless steel
Material accessories
Other
Accessory quality class
Other
Material appliance piping
Other
Quality class of the appliance piping
Other
Volumetric flow (BEP)
4.7m³/h
Back‑pressure height according to volumetric flow (BEP)
300.98kPa
Max. delivery volume
6.4m³/h
Max. delivery head
37.3m
Max. operating pressure
10bar
Frequency
50 Hz
Rated current
8A
Recorded motor power (P1)
2kW
Motor output power (P2)
1.5kW
Engine speed adjustment
Built-in
Type of speed control
Continuous
Supply side connection
Bride
Diameter connection supply side
1 1/4 inch (32)
Compression stage with flange on inlet side
PN 10
Type connection side outlet
Parallel female gas thread (BSPP)
Diameter of the connection on the pressure side
1 1/4 inch (32)
Pressure level for flasque outlet connection
PN 10
Suction installation
No
Protection index (IP) of the pump
IP54
Type of protection (IP), cabinet
IP54
Width
24.41mm
Height
39.37mm
EAN code
5715472849082

Key features

  • Height: 39.37mm
  • Material of the pump housing: Stainless steel
  • Material accessories: Other
  • Accessory quality class: Other
  • Material appliance piping: Other

About this product

Grundfos - RCME - CME5-4 - récup. des eaux de pluie domest. - temp. ambiante max: 40 °C - press. max. de serv.: 5 bar - asp. pump: 3/2" - refoulement pump: 5/4" - profond. max. d'install.: 20m - fréq. d'supply: 50HZ - indice de protec.: IP54 - length du câble: 4m

Delivery and returns

Free delivery in Belgium

Shipping in 3-6 working days when in stock

14-day right of return

Free delivery in Belgium for standard parcels. Delivered in 3-6 working days when in stock. Manufacturer warranty according to the product.

Manufacturer warranty

2 year manufacturer warranty

Minimum 2-year manufacturer warranty + Valtieri after-sales included

Secure payment

VAT invoice with every order

incl. 21% VAT · excl. 21% VAT
