Dab
Dab E.Sybox Mini groupe hydrophore pour la récupération en eau de pluie 0,8 kW
Ref. VM-20069795
€77,14
€63,75
incl. VAT
excl. VAT
Specifications
- Reference
- VM-20066347
- Suitable for rainwater
- Yes
- Suitable for watering/irrigation
- Yes
- Suitable for utility water
- Yes
- Quality of the material of the pump case
- Other
- Material of the pump housing
- Other
- Material of the fan/pump rotor
- Polypropylene
- Quality class of the fan rotor material
- Other
- Material of the container
- Other
- Quality class of the reservoir
- Other
- Volumetric flow (BEP)
- 3.72m³/h
- Back‑pressure height according to volumetric flow (BEP)
- 196.08kPa
- Max. delivery volume
- 5.3m³/h
- Electrical connection
- Connection cord with socket
- Max. delivery head
- 36m
- Max. operating pressure
- 8bar
- Length of cable
- 1.5m
- Rated voltage
- 230V
- Frequency
- 50 Hz
- Rated current
- 3.27A
- Recorded motor power (P1)
- 0.72kW
- Motor output power (P2)
- 0.45kW
- Rotation speed
- 28001/min
- Engine speed adjustment
- Without
- Communication
- Integrated and prepared
- Standard radio Bluetooth
- No
- Standard radio WLAN 802.11
- No
- Standard radio 5G
- No
- Signal d'interface 0-10 V / 2-10 V
- Yes
- Signal d'interface 0-20 mA / 4-20 mA
- Yes
- PT100 / PT1000 / PTC interface
- Yes
- Interface pulse counter
- No
- PWM interface
- No
- With RS-232 communication interface
- No
- Switch contact without potential
- Yes
- With RS-485 communication interface
- Yes
- Protocol supported for EtherNet/IP
- No
- Protocol supported for KNX
- No
- Protocol supported for PROFIBUS
- No
- Protocol supported for CAN / CANOpen
- No
- Protocol supported for PROFINET IO
- No
- Protocol supported for Modbus TCP
- No
- Protocol supported for Modbus RTU
- No
- Protocol supported for BACnet MS / TP
- No
- Protocol supported for BACnet IP
- No
- Protocol supported for LON / LONWorks
- No
- Protocol supported for the LIN bus
- No
- Average temperature (continuous operation)
- 0°C45°C
- Ambient temperature
- 0°C55°C
- Supply side connection
- Tapered male gas thread (BSPT)
- Standard connection, inlet side
- ISO 228-1
- Diameter connection supply side
- 1 inch (25)
- Type connection side outlet
- Tapered male gas thread (BSPT)
- Diameter of the connection on the pressure side
- 1 inch (25)
- Type of connection on the outlet side
- ISO 228-1
- Suction installation
- Yes
- With diversion pipe
- No
- Protection index (IP) of the pump
- IP20
- Type of protection (IP), cabinet
- IP20
- Length
- 650mm
- Width
- 259.3mm
- Height
- 733mm
- EAN code
- 5715122000634
Key features
- Height: 733mm
- Suitable for rainwater: Yes
- Suitable for watering/irrigation: Yes
- Suitable for utility water: Yes
- Quality of the material of the pump case: Other
About this product

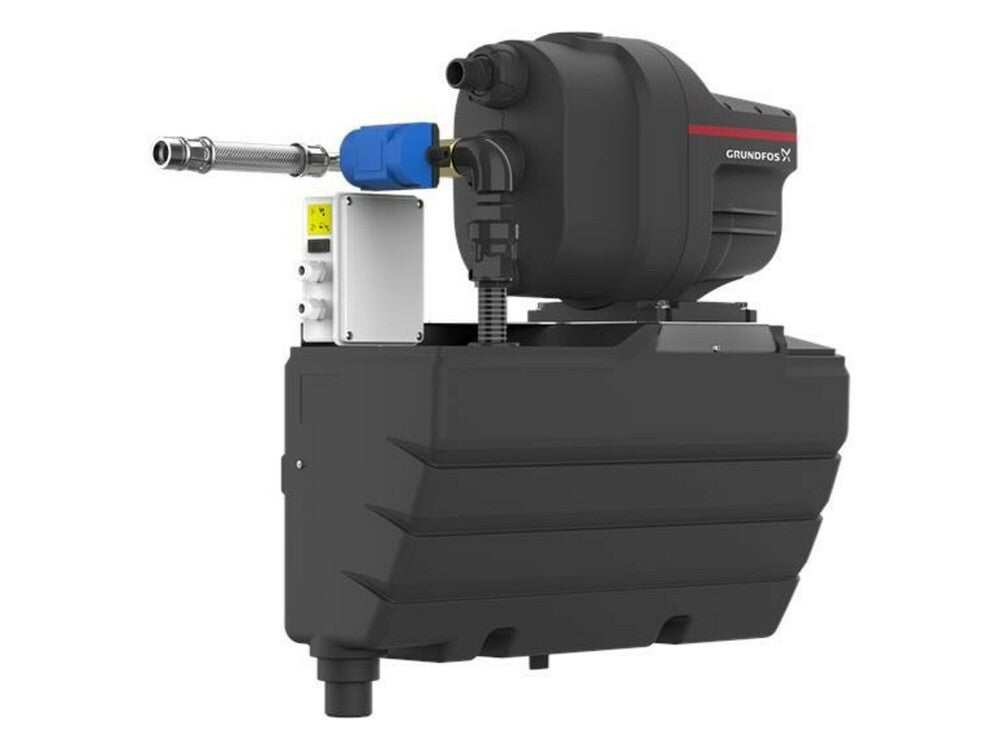

Grundfos. SCALA1. Système de récupération d'eau de pluie. Le système est utilisé for la gestion et la distribution de l'eau de pluie. Le système privilégie l'utilisation de l'eau de pluie à l'eau de distribution. En cas de manque d'eau de pluie dans le cistern, l'unitee de commande bascule on l'eau de distribution for asoner le débit d'eau nécessaire aux points de dérivation. Le système bascule automaticment entre le cistern d'eau de pluie et le cistern d'eau du tap grâce à une valve 3 voies installée à l'orifice d'entrée de la pump. L'eau fournie per le système n'est pas potable. C'est conforme à la norme EN1717.
