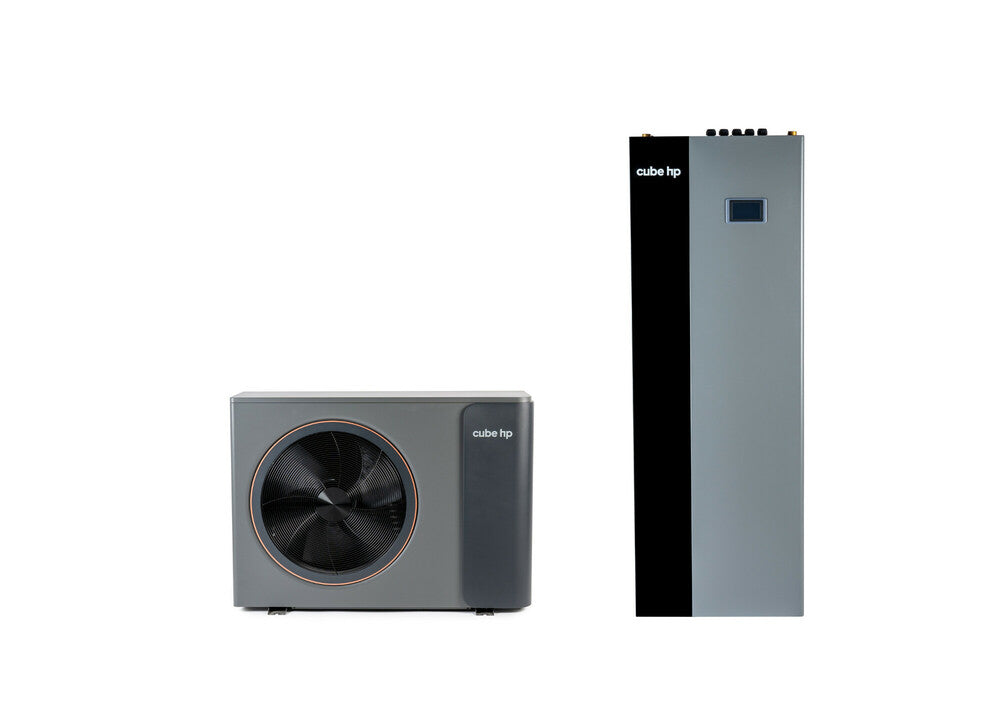

Cube HP Combi S 15 lucht/water warmtepomp "split" 250L boiler 15,5 kW tri, wp l/w - split - set met boiler — SKU VM-20059312

Specifications

Reference
VM-20059312
Model
Complete
Suitable for central heating
Yes
Ambient temperature regulation
Yes
Control type
Atmospheric condition regulation
Type d'optimisation
Other
External control required
No
Suitable for domestic hot water
Yes
Integrated cooling
Yes
Suitable for active cooling
Yes
Pool setting
No
Suitable for pool water heating
No
Boiler control regulation
Yes
Accumulator control regulation
Yes
With electric heating element
Yes
Modulating compressor
Yes
Adjustable electric heating element per step
Yes
Refrigerant charge
1kg
Refrigerant type
R32
Nominal diameter fluid conduit
1/4 pouce
Nominal diameter suction pipe
1/2 inch
Connection voltage
230V
Height of the interior unit
1720mm
Depth of the outdoor unit
1225mm
External unit width
431mm
Height of the exterior unit
858mm
Weight of the outdoor unit
65kg
Maximum start temperature of heating
56°C
Remote command possible
Yes
Data transfer via USB
No
Data transfer via Internet
Yes
Outer diameter, sanitary water
1 pouce externe
Pump type (system pump)
Energy efficient
Diameter of central heating thread
1 pouce externe
Pump power type (system pump)
CC
Speed regulation, pump (system pump)
Built-in
Type of speed regulation (system pump)
Scaled
Connection and adjustment of multiple possible emitter systems
Yes
Integrated progressive start
Yes
Energy efficiency class room heating (811/2013/EU)
A++
Energy efficiency class water heating (811/2013/EU)
A+
Protection index (IP) for indoor unit
IPX4
Protection index (IP) for outdoor unit
IPX4

Key features

  • Model: Complete
  • Suitable for central heating: Yes
  • Ambient temperature regulation: Yes
  • Control type: Atmospheric condition regulation
  • Type d'optimisation: Other

About this product

Cube. HP Combi S. Air/water heat pump. Available capacities 6 to 15 kW. Split version. Supplied as standard with a high-performance stainless steel cylinder of 250L and a 500W element for extra hot water production. Due to the low height, the unit can be installed in almost any basement. Only space at the front is needed to give the necessary attention to all built-in components. All connections are on the top side. Because everything is prepared at the factory, no time or installation material is needed to still connect the cylinder, and you lose no space or time having to install the cylinder and the indoor unit separately. The two separate heating zones are easy to set on the display at the front. The pre-set display can be easily adapted to any situation. Heating and cooling as standard without extra kits. ErP Ready.

Delivery and returns

Free delivery in Belgium

Shipping in 3-6 working days when in stock

14-day right of return

Free delivery in Belgium for standard parcels. Delivered in 3-6 working days when in stock. Manufacturer warranty according to the product.

Manufacturer warranty

2 year manufacturer warranty

Minimum 2-year manufacturer warranty + Valtieri after-sales included

Secure payment

VAT invoice with every order

incl. 21% VAT · excl. 21% VAT
