Atlantic
Atlantic Alféa Excellia AI 14 pompe à chaleur air/eau split 13,5 kW mono
Ref. VM-20047340
€351,01
€290,09
incl. VAT
excl. VAT
Specifications
- Reference
- VM-20054194
- Model
- Complete
- Heat capacity at 7/35 °C according to EN 14511
- 4.6kW
- COP at 7/35 °C according to EN 14511
- 5.2
- Maximum cable length
- 30m
- Control type
- Atmospheric condition regulation
- External control required
- No
- Suitable for domestic hot water
- Yes
- Suitable for active cooling
- Yes
- Accumulator control regulation
- Yes
- With electric heating element
- Yes
- Power of the electric heating element
- 6kW
- Modulating compressor
- Yes
- Adjustable electric heating element per step
- Yes
- Refrigerant charge
- 1.2kg
- Refrigerant type
- R32
- Nominal diameter fluid conduit
- 1/4 pouce
- Nominal diameter suction pipe
- 1/2 inch
- Connection voltage
- 230V
- Internal unit width
- 600mm
- Height of the interior unit
- 1250mm
- Depth of the indoor unit
- 748mm
- Depth of the outdoor unit
- 360mm
- External unit width
- 921mm
- Height of the exterior unit
- 880mm
- Weight of the indoor unit
- 139kg
- Weight of the outdoor unit
- 54kg
- Maximum start temperature of heating
- 60°C
- Remote command possible
- Yes
- Data transfer via USB
- No
- Maximum service pressure emitter system
- 3bar
- Diameter of central heating thread
- 1 pouce externe
- Energy efficiency class room heating (811/2013/EU)
- A++
- Energy efficiency class water heating (811/2013/EU)
- A+
Key features
- Model: Complete
- Heat capacity at 7/35 °C according to EN 14511: 4.6kW
- COP at 7/35 °C according to EN 14511: 5.2
- Maximum cable length: 30m
- Control type: Atmospheric condition regulation
About this product

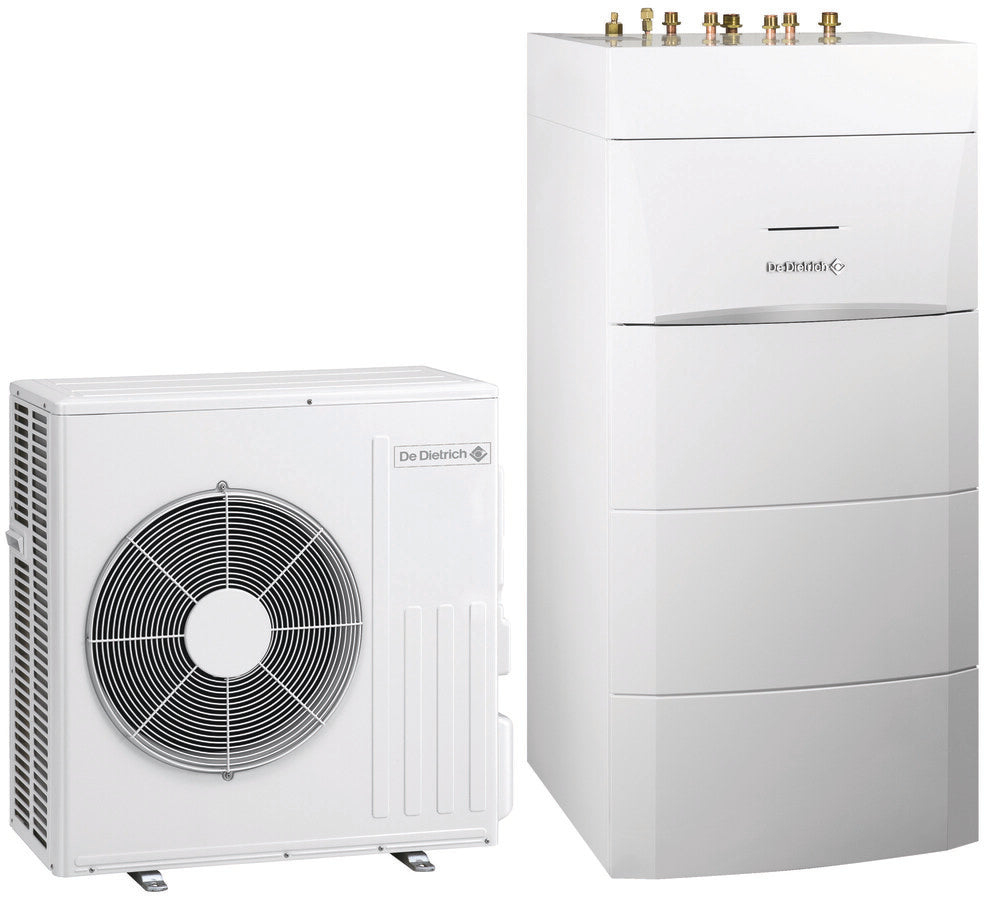

De Dietrich. Alezio S V200. Air/water heat pump split inverter consisting of an outdoor unit, indoor unit MIV-S...V200 R32 and a 180 litre DHW cylinder. Reversible for cooling mode with underfloor heating. Limitation of starting current thanks to INVERTER technology. Outdoor unit: modulating compressor, evaporator, one or two propeller fans, electronic expansion valves, dehumidifying filter, high-pressure safety pressure switch. Hydraulic indoor unit available in 2 versions: MIV-S V200 R32/E: auxiliary heating with integrated electric resistance and MIV-S V200 R32/H: hydraulic auxiliary heating via boiler. Indoor unit: control panel with weather-dependent control, condenser consisting of stainless steel plate heat exchanger, low-loss header, heating circulation pump, 8 litre expansion vessel, pressure gauge, safety valve, automatic air vent and flow meter. DHW cylinder with enamelled tank protected with magnesium anode and connecting pipes with MIV-S. ErP Ready.
Delivery and returns
Free delivery in Belgium from €65 excl. VAT
In stock · ships in 3-6 working days
14-day right of return
Free delivery in Belgium from €65 excl. VAT, otherwise €9.95. Delivered in 3-6 working days when in stock. Manufacturer warranty according to the product.
Manufacturer warranty
2 year manufacturer warranty
Minimum 2-year manufacturer warranty + Valtieri after-sales included
Secure payment
VAT invoice with every order
incl. 21% VAT · excl. 21% VAT
