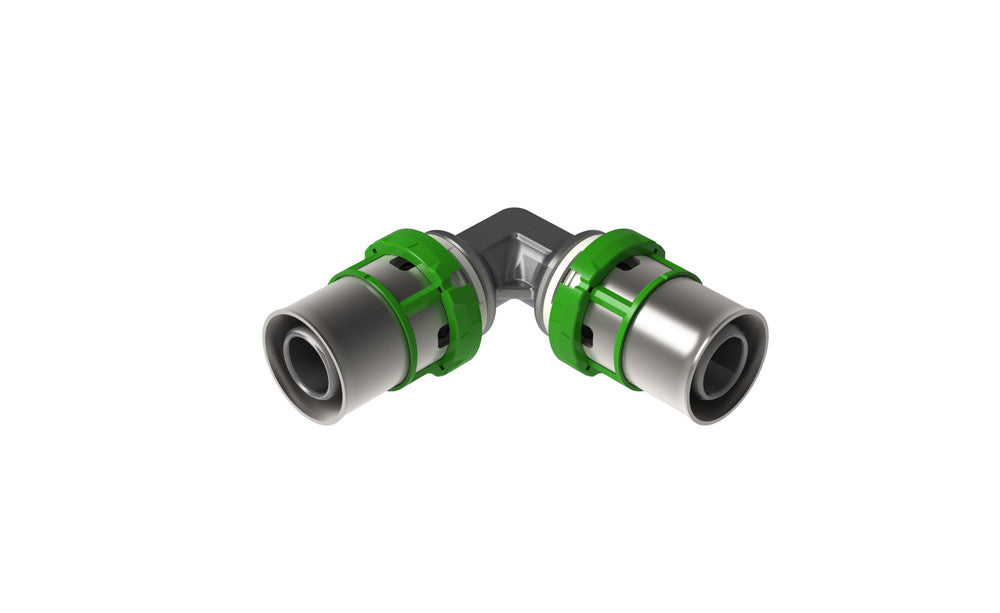

Comap Skinpress kniekoppeling 90° Multiskin meerlagenbuis 16-16, multicouche-sertir: coudes, manchons, raccords — SKU VM-20021838, EAN 3430650460225

Specifications

Reference
VM-20021838
Material connection 1
Brass
Material quality connection 1
CuZn39Pb3 (CW617N)
Surface treatment connection 1
Sandblasted
Surface protection connection 1
Tinned
Material connection 2
Brass
Surface treatment connection 2
Sandblasted
Material quality connection 2
CuZn39Pb3 (CW617N)
Surface protection connection 2
Tinned
Shape
Elbow
Model
1 piece
Elbow angle
90°
Elbow radius
1.571mm
Eccentric
No
Reduced
No
System-bound
Yes
Nominal diameter connection 1
DN 25
Outer diameter of pipe connection 1
32mm
Wall thickness connecting pipe, connection 1
3mm
Wall thickness connection 1
3mm
Connection 1
Compression sleeve
Contour code connection 1
TH/U
Nominal diameter connection 2
DN 25
Outer diameter of pipe connection 2
32mm
Wall thickness connection 2
3mm
Wall thickness connecting pipe, connection 2
3mm
Contour code connection 2
TH/U
Connection 2
Compression sleeve
Fitting main color
Gray
Nominal flange pressure
Other
Sealing material
EPDM
With stop
Yes
Zeta value
1.44
Length
120mm
Tensile-resistant
No
Length connection 1
60mm
Length connection 2
60mm
Working length connection 1
32mm
Working length connection 2
32mm
Wrench size
0mm
Universal wrench diameter
0mm
Average temperature (continuous operation)
-20°C70°C
Maximum operating pressure at 20 °C
10bar
Max. operating pressure at max. average temperature
10bar
With thermal insulation
No
Ring stiffness class
Other
With sealing material
No
Closed
No
With distribution valve
No
With connection indicator
No
With air vent
No
FM tests
No
LPCB tests
No
UL approval
No
ULC quality label
No
VdS certified
No
DIN-CERTCO certificate
No
With TÜV approval
No
DVGW quality label for gas
Yes
Certified according to NF 545
Yes
DVGW quality label for water
Yes
QA gas equipment
No
KIWA quality mark
Yes
Approval according to BBR/EKS
No
KOMO quality mark
Yes
EAN code
3430650460225

Key features

  • Material connection 1: Brass
  • Material quality connection 1: CuZn39Pb3 (CW617N)
  • Surface treatment connection 1: Sandblasted
  • Surface protection connection 1: Tinned
  • Material connection 2: Brass

About this product

Comap. Skinpress. Elbow coupling 90°. 2 x press. The SkinPress press couplings were designed with the aim of optimising and securing your sanitary and heating installations. The use of SkinPress couplings is ideal for new-build projects: they are easy to work with (manual bending, use of an uncoiler, lightness of the pipe), they have an aesthetic appearance (so the pipe does not need to be painted). Properties: range from 14 to 63 mm diameter, Visu-Control press collar, TH press profile and compatible with other press profiles (see technical manual), high-quality EPDM O-ring. 10-year warranty.

Delivery and returns

Free delivery in Belgium

Shipping in 3-6 working days when in stock

14-day right of return

Free delivery in Belgium for standard parcels. Delivered in 3-6 working days when in stock. Manufacturer warranty according to the product.

Manufacturer warranty

2 year manufacturer warranty

Minimum 2-year manufacturer warranty + Valtieri after-sales included

Secure payment

VAT invoice with every order

incl. 21% VAT · excl. 21% VAT
