Systempex
SYSTEMPEX montagebeugel koper D15 x 1/2"F asafstand 150mm
Ref. VM-20004531
€18,72
€15,47
incl. VAT
excl. VAT
Specifications
- Reference
- VM-20021920
- Material connection 1
- Brass
- Material quality connection 1
- CuZn39Pb3 (CW617N)
- Surface treatment connection 1
- Polished
- Surface protection connection 1
- Tinned
- Material connection 2
- Brass
- Surface treatment connection 2
- Polished
- Material quality connection 2
- CuZn39Pb3 (CW617N)
- Surface protection connection 2
- Tinned
- Shape
- Straight
- Model
- 2 pieces
- Elbow angle
- 0°
- Elbow radius
- 0mm
- Eccentric
- No
- Reduced
- No
- System-bound
- Yes
- Nominal diameter connection 1
- DN 20
- Outer diameter of pipe connection 1
- 26mm
- Wall thickness connecting pipe, connection 1
- 3mm
- Wall thickness connection 1
- 3mm
- Connection 1
- Compression sleeve
- Contour code connection 1
- TH
- Nominal diameter connection 2
- 3/4 inch (20)
- Outer diameter of pipe connection 2
- 19.05mm
- Wall thickness connection 2
- 3mm
- Wall thickness connecting pipe, connection 2
- 3mm
- Contour code connection 2
- Other
- Connection 2
- Parallel female gas thread (BSPP)
- Fitting main color
- Gray
- Nominal flange pressure
- Other
- Sealing material
- EPDM
- With stop
- Yes
- Length
- 59mm
- Tensile-resistant
- No
- Length connection 1
- 25mm
- Length connection 2
- 34mm
- Working length connection 1
- 30mm
- Working length connection 2
- 24mm
- Wrench size
- 0mm
- Universal wrench diameter
- 0mm
- Average temperature (continuous operation)
- -20°C70°C
- Maximum operating pressure at 20 °C
- 10bar
- Max. operating pressure at max. average temperature
- 10bar
- With thermal insulation
- No
- Ring stiffness class
- Other
- With sealing material
- No
- Closed
- No
- With distribution valve
- No
- With connection indicator
- No
- With air vent
- No
- FM tests
- No
- LPCB tests
- No
- UL approval
- No
- ULC quality label
- No
- VdS certified
- No
- DIN-CERTCO certificate
- No
- With TÜV approval
- No
- DVGW quality label for gas
- Yes
- Certified according to NF 545
- Yes
- DVGW quality label for water
- Yes
- QA gas equipment
- No
- KIWA quality mark
- Yes
- Approval according to BBR/EKS
- No
- KOMO quality mark
- Yes
- EAN code
- 3430650463004
Key features
- Material connection 1: Brass
- Material quality connection 1: CuZn39Pb3 (CW617N)
- Surface treatment connection 1: Polished
- Surface protection connection 1: Tinned
- Material connection 2: Brass
About this product

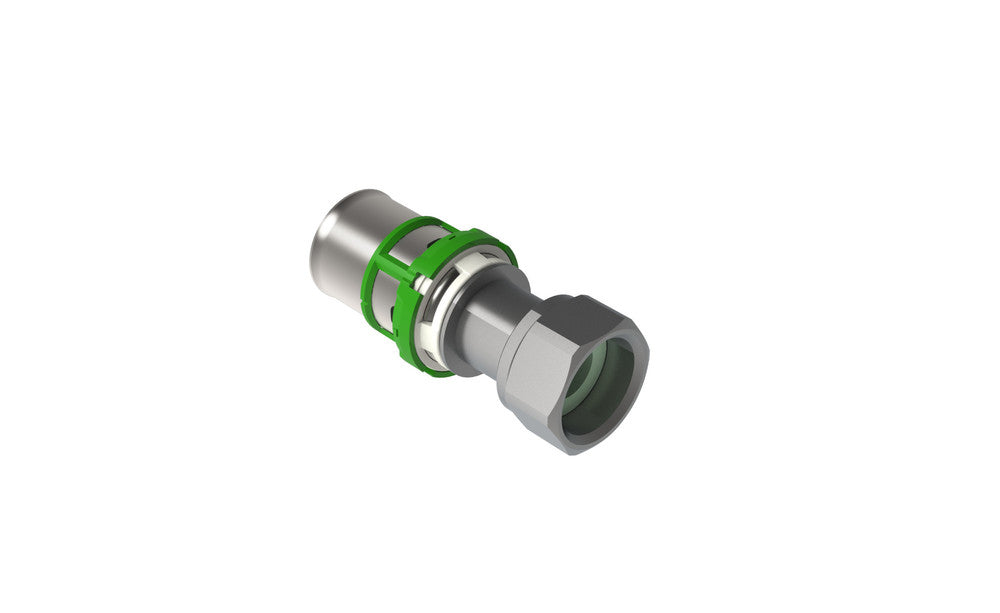

Comap. Skinpress. Transition coupling with union nut. Press x secured union with flat seal . The SkinPress press couplings were designed with a view to optimising and securing your sanitary and heating installations. The use of SkinPress couplings is ideal for new-build projects: they are easy to work with (manual bending, use of an uncoiler, lightness of the pipe), they have an attractive appearance (so the pipe does not need to be painted). Properties: range of 14 to 63 mm diameter, Visu-Control press collar, TH press profile and compatible with other press profiles (see technical manual), high-quality EPDM O-ring. 10-year guarantee.
Delivery and returns
Free delivery in Belgium from €65 excl. VAT
In stock · ships in 3-6 working days
14-day right of return
Free delivery in Belgium from €65 excl. VAT, otherwise €9.95. Delivered in 3-6 working days when in stock. Manufacturer warranty according to the product.
Manufacturer warranty
2 year manufacturer warranty
Minimum 2-year manufacturer warranty + Valtieri after-sales included
Secure payment
VAT invoice with every order
incl. 21% VAT · excl. 21% VAT
