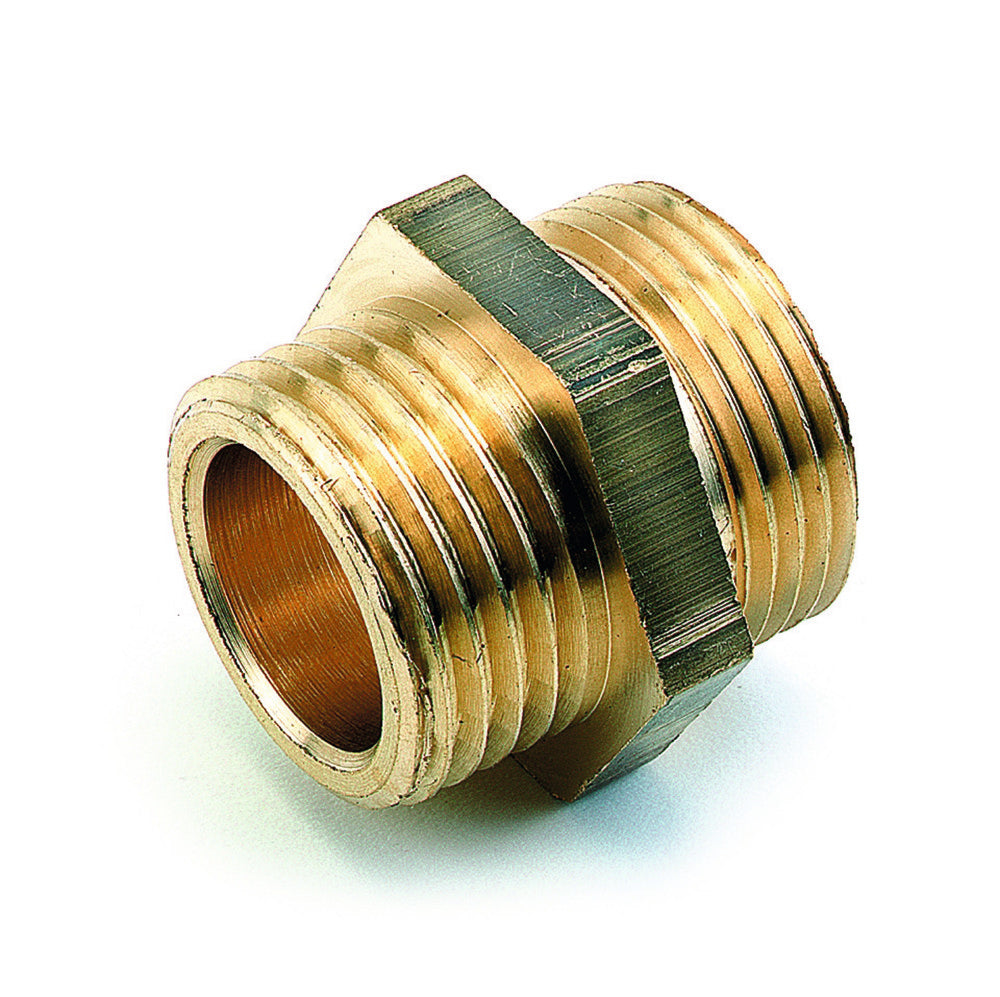

Comap aansluitnippel O-ring afdichting messing verdelers 1/2"Mx3/4"M, mamelons, adaptoren, nippels voor collectoren — SKU VM-20026449, EAN 3430650167988

Specifications

Reference
VM-20026449
Material connection 1
Brass
Material quality connection 1
CuZn39Pb3 (CW617N)
Surface treatment connection 1
Untreated
Surface protection connection 1
Untreated
Material connection 2
Brass
Surface treatment connection 2
Untreated
Material quality connection 2
CuZn39Pb3 (CW617N)
Surface protection connection 2
Untreated
Shape
Straight
Model
Other
Elbow angle
0°
Elbow radius
0mm
Eccentric
No
Reduced
No
System-bound
Yes
Nominal diameter connection 1
1/2 inch (15)
Outer diameter of pipe connection 1
22mm
Wall thickness connecting pipe, connection 1
3mm
Wall thickness connection 1
3mm
Connection 1
Parallel male gas thread (BSPP)
Contour code connection 1
Other
Nominal diameter connection 2
M22 x 1, 5
Outer diameter of pipe connection 2
22mm
Wall thickness connection 2
3mm
Wall thickness connecting pipe, connection 2
3mm
Contour code connection 2
Other
Connection 2
Male thread (metric)
Fitting main color
Brass
Sealing material
EPDM
With stop
No
Length
29mm
Tensile-resistant
No
Length connection 1
29mm
Length connection 2
25mm
Working length connection 1
25mm
Working length connection 2
25mm
Wrench size
0mm
Universal wrench diameter
0mm
Maximum operating pressure at 20 °C
10bar
Max. operating pressure at max. average temperature
10bar
With thermal insulation
No
Ring stiffness class
Other
With sealing material
No
Closed
No
With distribution valve
No
With connection indicator
No
With air vent
No
FM tests
No
LPCB tests
No
UL approval
No
ULC quality label
No
VdS certified
No
DIN-CERTCO certificate
No
With TÜV approval
No
DVGW quality label for gas
Yes
Certified according to NF 545
Yes
DVGW quality label for water
Yes
QA gas equipment
No
KIWA quality mark
Yes
Approval according to BBR/EKS
No
KOMO quality mark
Yes
EAN code
3430650167988

Key features

  • Material connection 1: Brass
  • Material quality connection 1: CuZn39Pb3 (CW617N)
  • Surface treatment connection 1: Untreated
  • Surface protection connection 1: Untreated
  • Material connection 2: Brass

About this product

Comap. Connection nipple with O-ring for sealing profile brass manifolds ref. 825-825P-829-835S.

Delivery and returns

Free delivery in Belgium

Shipping in 3-6 working days when in stock

14-day right of return

Free delivery in Belgium for standard parcels. Delivered in 3-6 working days when in stock. Manufacturer warranty according to the product.

Manufacturer warranty

2 year manufacturer warranty

Minimum 2-year manufacturer warranty + Valtieri after-sales included

Secure payment

VAT invoice with every order

incl. 21% VAT · excl. 21% VAT
