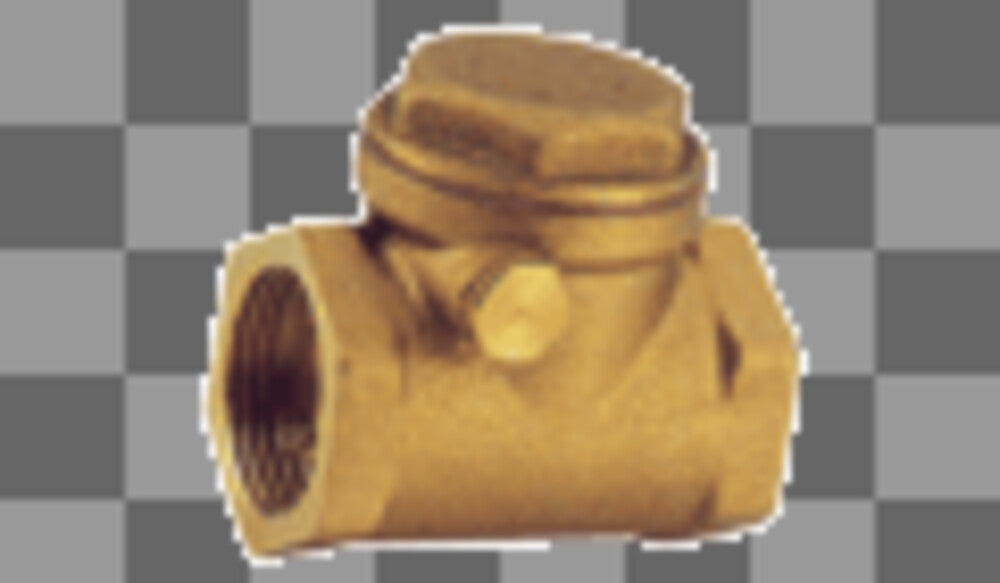

Terugslagklep horizontaal messing 1/2", clapets anti-retour — SKU VM-20000156, EAN 5400221930332

Specifications

Reference
VM-20000156
Housing material
Brass
Surface treatment
Untreated
Nominal diameter
1/2 inch (15)
Nominal pressure of the item
PN 16
Connections
Female gas conical thread (BSPT)
Nominal flange pressure
PN 16
Valve shape
Clapet antiretour basculant
Model
Other
Seal
Rubber
With counterweight
No
With closing spring
No
Check valve angle
90°
FM tests
No
Average temperature (continuous operation)
80°C
Maximum operating pressure at 20 °C
16bar
UL approval
No
LPCB tests
No
ULC quality label
No
VdS certified
No
EAN code
5400221930332

Key features

  • Surface treatment: Untreated
  • Housing material: Brass
  • Nominal diameter: 1/2 inch (15)
  • Nominal pressure of the item: PN 16
  • Connections: Female gas conical thread (BSPT)

About this product

Horizontal check valve brass 1/2" brass housing, untreated surface finish, nominal diameter 1/2" (15), nominal pressure PN 16, female conical gas thread fittings (BSPT), valve angle 90°, rubber gasket, average temperature 80°C, maximum service pressure 16bar at 20°C. It is part of the Thermal Insulation range.

Delivery and returns

Free delivery in Belgium

Shipping in 3-6 working days when in stock

14-day right of return

Free delivery in Belgium for standard parcels. Delivered in 3-6 working days when in stock. Manufacturer warranty according to the product.

Manufacturer warranty

2 year manufacturer warranty

Minimum 2-year manufacturer warranty + Valtieri after-sales included

Secure payment

VAT invoice with every order

incl. 21% VAT · excl. 21% VAT
