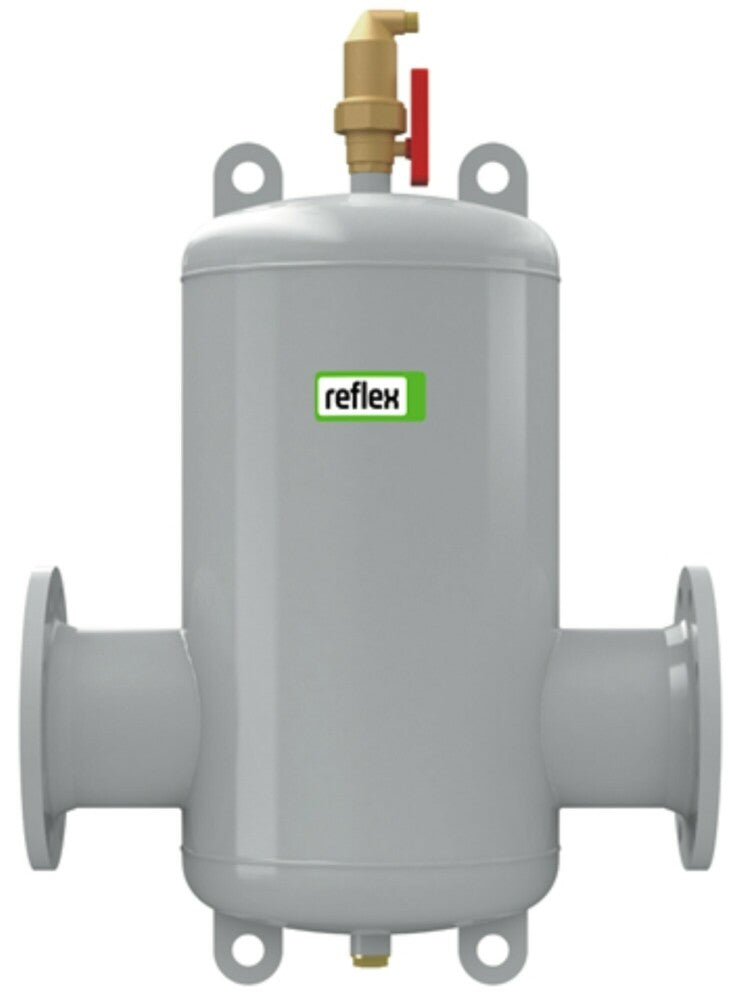

Reflex Exvoid microbellenafscheider A 80 met flensaansluiting, séparateurs d'air et d'impuretés — SKU VM-20059048, EAN 4036705118500

Specifications

Reference
VM-20059048
Type of separator
Air
Model
Horizontal
Housing material
Steel
Quality of the material of the case
Stainless steel 37, 2 (1, 0038)
Direction of variable flow
Yes
Suitable for heating
Yes
Suitable for cooling
Yes
Nominal diameter
DN 125
Connection
Bride
Outer diameter of the pipe
139.7mm
Length of construction
635mm
Surface treatment
Other
Flow capacity
0.1m³/h72m³/h
Suitable for open systems
No
Suitable for closed systems
Yes
With removable filter
No
With automatic air inlet
Yes
With couplers
No
Offset distance input/output
0mm
Max. operating pressure
10bar
Average temperature (continuous operation)
0.11°C
Kvs value
351.3
With insulation
No
With integrated filling controller
No
EAN code
4036705118500

Key features

  • Surface treatment: Other
  • Type of separator: Air
  • Model: Horizontal
  • Housing material: Steel
  • Quality of the material of the case: Acier inoxydable 37,2 (1,0038)

About this product

Reflex. Exvoid. Air/micro-bubble separator for heating and cooling water systems or closed, liquid-filled systems. Suitable for water and water/glycol mixtures up to a mixing ratio of 50/50%. Fitting for collecting gas bubbles from the liquid flow via optimised separator element or automatic, permanent discharge into the atmosphere via integrated, shut-off Reflex Exvoid-T large air vent with 3-way valve section.

Delivery and returns

Free delivery in Belgium

Shipping in 3-6 working days when in stock

14-day right of return

Free delivery in Belgium for standard parcels. Delivered in 3-6 working days when in stock. Manufacturer warranty according to the product.

Manufacturer warranty

2 year manufacturer warranty

Minimum 2-year manufacturer warranty + Valtieri after-sales included

Secure payment

VAT invoice with every order

incl. 21% VAT · excl. 21% VAT
