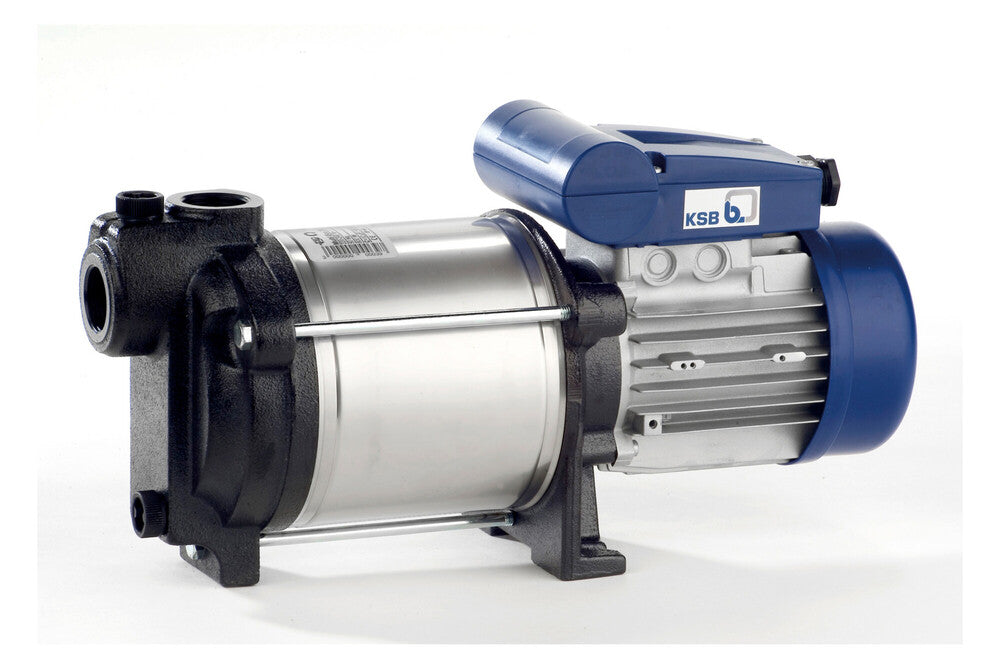

KSB Multi Eco 36 E centrifugaalpomp meertraps met kabel zonder schakelautomaat, pompes auto amorcantes — SKU VM-20068737, EAN 3247545064167

Specifications

Reference
VM-20068737
Material of the pump housing
Cast iron
Quality class of the fan rotor material
Fonte EN-GJL-250 (GG 25)
Material of the fan/pump rotor
Other
Quality of the material of the pump case
Fonte EN-GJL-150 (GG 15)
Volumetric flow (BEP)
8m³/h
Max. delivery volume
8m³/h
Maximum suction height
8m
Max. delivery head
186m
Length of cable
1.5m
Max. operating pressure
10bar
Frequency
50 Hz
Rated current
220A
Recorded motor power (P1)
1.22kW
Rotation speed
28001/min
Supply side connection
Parallel female gas thread (BSPP)
Diameter connection supply side
1 1/4 inch (32)
Diameter of the connection on the pressure side
1 inch (25)
Standard connection, inlet side
ISO 228-1
Type connection side outlet
Parallel female gas thread (BSPP)
Type of connection on the outlet side
ISO 228-1
Protection class (IP)
IP44
Drive type
Electrical
With automatic start/stop
No
With pressurized reservoir
No
Material of the pressure vessel
Other
Height on suction side
141mm
Height on pressure side
186mm
Average length pressure/suction
57.5mm
Motor efficiency class
IE2
Length of the pump
467mm
EAN code
3247545064167

Key features

  • Material of the pump housing: Cast iron
  • Quality class of the fan rotor material: Fonte EN-GJL-250 (GG 25)
  • Material of the fan/pump rotor: Other
  • Quality of the material of the pump case: Fonte EN-GJL-150 (GG 15)
  • Volumetric flow (BEP): 8m³/h

About this product

KSB. Multi Eco 36 E. pump centrifuge. Multicellulaire. 1x230V 50Hz IE2. with cable.
