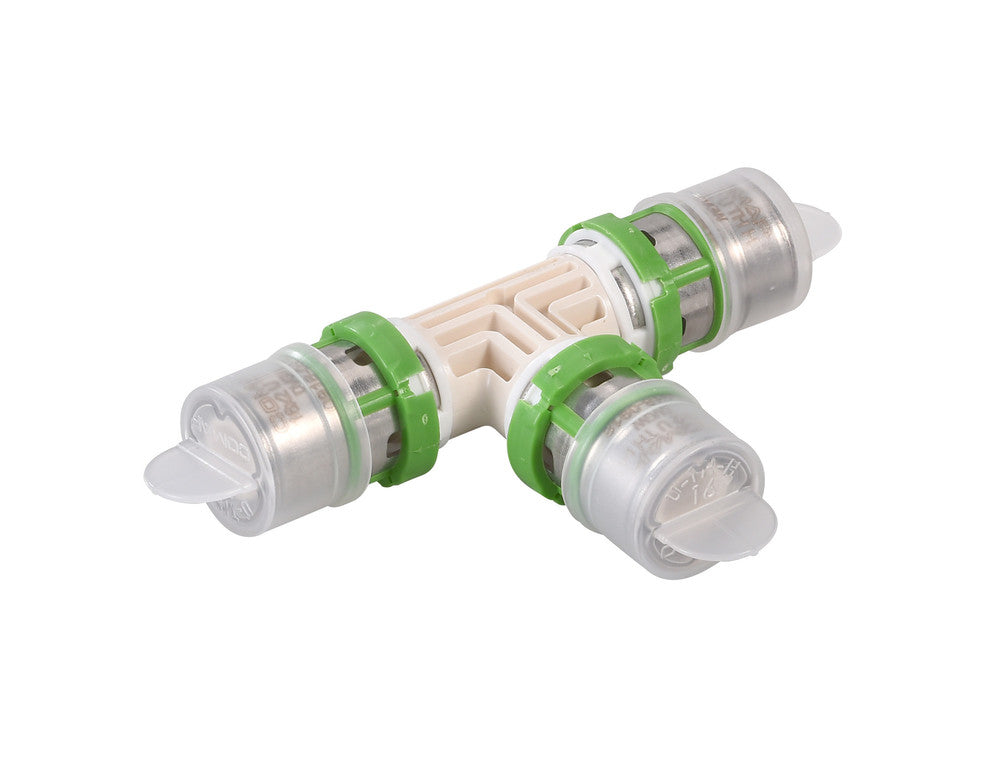

Comap Skinpress PPSU T-koppelstuk 16-16-16, multicouche-sertir: tés raccords — SKU VM-20039883, EAN 3430650464926

Specifications

Reference
VM-20039883
Material quality connection 1
Other
Material connection 1
PP-SU
Surface treatment connection 1
Untreated
Surface protection connection 1
Untreated
Material connection 2
PP-SU
Surface protection connection 2
Untreated
Material quality connection 2
Other
Surface treatment connection 2
Untreated
Material connection 3
PP-SU
Material quality connection 3
Other
Surface treatment connection 3
Untreated
Surface protection connection 3
Untreated
Model
T-piece
Flow type
Yes
Angle
180°
Reduced
No
In several parts
Yes
System-bound
Yes
Nominal diameter connection 1
DN 25
Outer diameter of pipe connection 1
32mm
Wall thickness connection 1
3mm
Connection 1
Compression sleeve
Nominal diameter connection 2
DN 25
Contour code connection 1
TH/U
Outer diameter of pipe connection 2
32mm
Wall thickness connection 2
3mm
Connection 2
Compression sleeve
Contour code connection 2
TH/U
Nominal inner diameter connection 3
DN 25
Outer diameter connection 3
32mm
Connection 3
Compression sleeve
Contour code connection 2
TH/U
Nominal flange pressure
Other
Flange standard
Other
Sealing material
EPDM
Fitting main color
Gray
Length connection 1
56mm
Working length connection 1
27mm
Length connection 2
56mm
Working length connection 2
27mm
Working length connection 3
27mm
Length connection 3
56mm
Wrench size
27mm
Universal wrench diameter
27mm
Average temperature (continuous operation)
0°C70°C
Max. operating pressure at max. average temperature
70bar
Maximum operating pressure at 20 °C
10bar
Ring stiffness class
Other
Wall thickness connection 3
3mm
With distribution valve
No
With sealing material
Yes
With air vent
No
With thermal insulation
No
With stop
Yes
With connection indicator
No
Closed
Yes
LPCB tests
No
FM tests
No
ULC quality label
No
UL approval
No
DIN-CERTCO certificate
No
VdS certified
No
With TÜV approval
No
DVGW quality label for gas
Yes
KIWA quality mark
Yes
DVGW quality label for water
Yes
KOMO quality mark
Yes
QA gas equipment
No
Approval according to BBR/EKS
No
EAN code
3430650464926

Key features

  • Material quality connection 1: Other
  • Material connection 1: PP-SU
  • Surface treatment connection 1: Untreated
  • Surface protection connection 1: Untreated
  • Material connection 2: PP-SU

About this product

Comap. Skinpress. PPSU. T-coupling. The SkinPress press couplings were designed with a view to optimising and securing your sanitary and heating installations. The use of the SkinPress couplings is ideal for new-build projects: they are easy to work with (manual bending, use of a pipe uncoiler, lightness of the pipe), they have an aesthetic appearance (so that the pipe does not need to be painted). Features: range from 14 to 63 mm diameter, Visu-Control press collar, TH press profile and compatible with other press profiles (see technical manual), high-quality EPDM O-ring. 10 year warranty.
