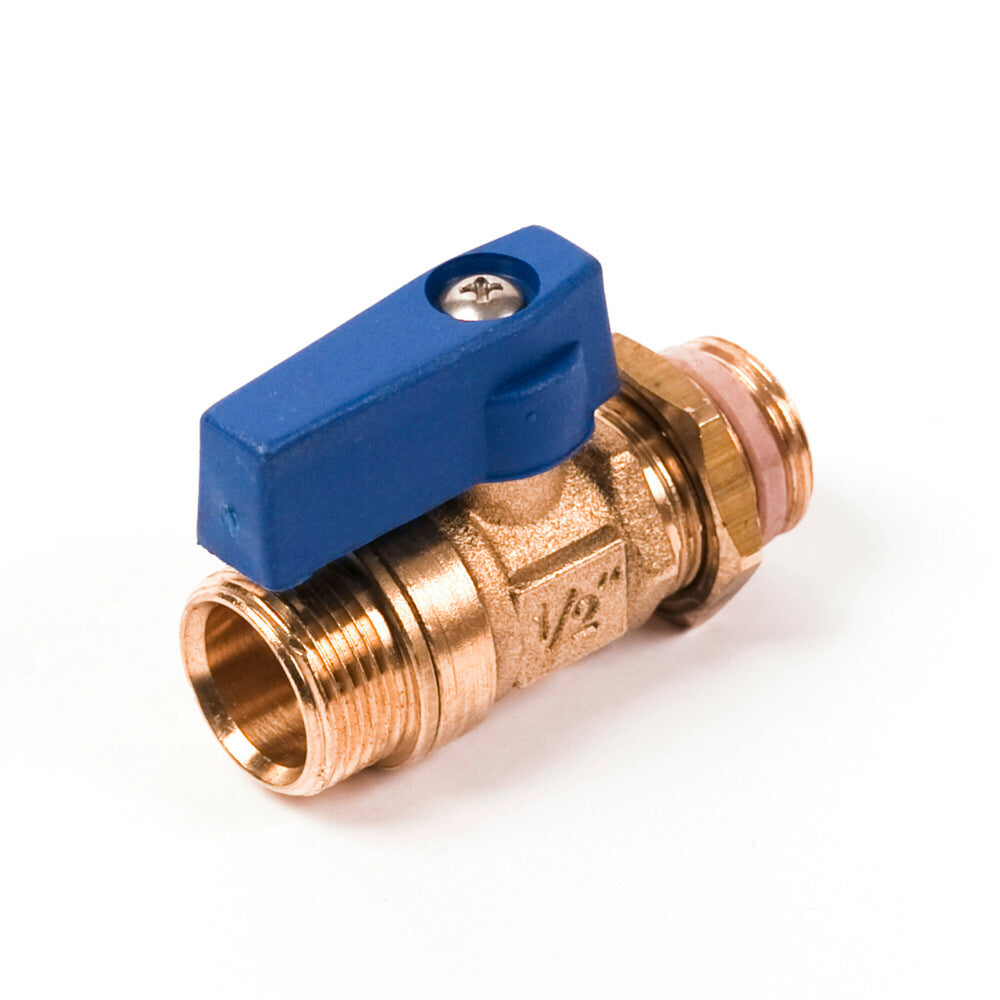

COM kogelkr.verd.bl 1/2M-M22, multicouche: vannes sphériques — SKU VM-20041120, EAN 3430650614642

Specifications

Reference
VM-20041120
Housing material
Brass
Material quality
Other
Surface protection of the enclosure
Chrome-plated
Material of the spherical joint
PTFE
Material of the sphere
Brass
Material of the primary stem joint
Sealing with metal
Material of the pin
Brass
Nominal diameter connection 1
DN 10
Material of the secondary stem joint
PTFE
Connection 1
Parallel male gas thread (BSPP)
With coupling connector 1
No
Nominal diameter connection 2
Other
Connection 2
Parallel male gas thread (BSPP)
With coupling connector 2
No
Seal
EPDM
Nominal flange pressure
Other
Nominal pressure of the item
PN 25
With drain opening
No
With distribution valve
No
With filter
No
With non-return valve
No
Model
Straight
With thermometer
No
FM tests
No
UL approval
No
ULC quality label
No
LPCB tests
No
Fire-resistant
No
Maximum pressure difference at 20 °C
10bar
Average temperature (continuous operation)
0°C70°C
Medically clean
No
Grease exempt
No
Control
Handle
Construction of the enclosure
1 piece
Fully free passage
Yes
Working length connection 1
13mm
Length connection 2
19mm
Working length connection 2
10mm
Length connection 1
19mm
Handle height
14mm
Handle length
40mm
Valve angle
0°
VdS certified
No
DVGW quality label for gas
No
DVGW quality label for water
No
KIWA quality mark
No
Approval according to BBR/EKS
No
EAN code
3430650614642

Key features

  • Housing material: Brass
  • Material quality: Other
  • Surface protection of the enclosure: Chrome-plated
  • Material of the spherical joint: PTFE
  • Material of the sphere: Brass

About this product

Comap. Shut-off valve for manifold with lever 1/2"MF.

Delivery and returns

Free delivery in Belgium

Shipping in 3-6 working days when in stock

14-day right of return

Free delivery in Belgium for standard parcels. Delivered in 3-6 working days when in stock. Manufacturer warranty according to the product.

Manufacturer warranty

2 year manufacturer warranty

Minimum 2-year manufacturer warranty + Valtieri after-sales included

Secure payment

VAT invoice with every order

incl. 21% VAT · excl. 21% VAT
