Sanutal

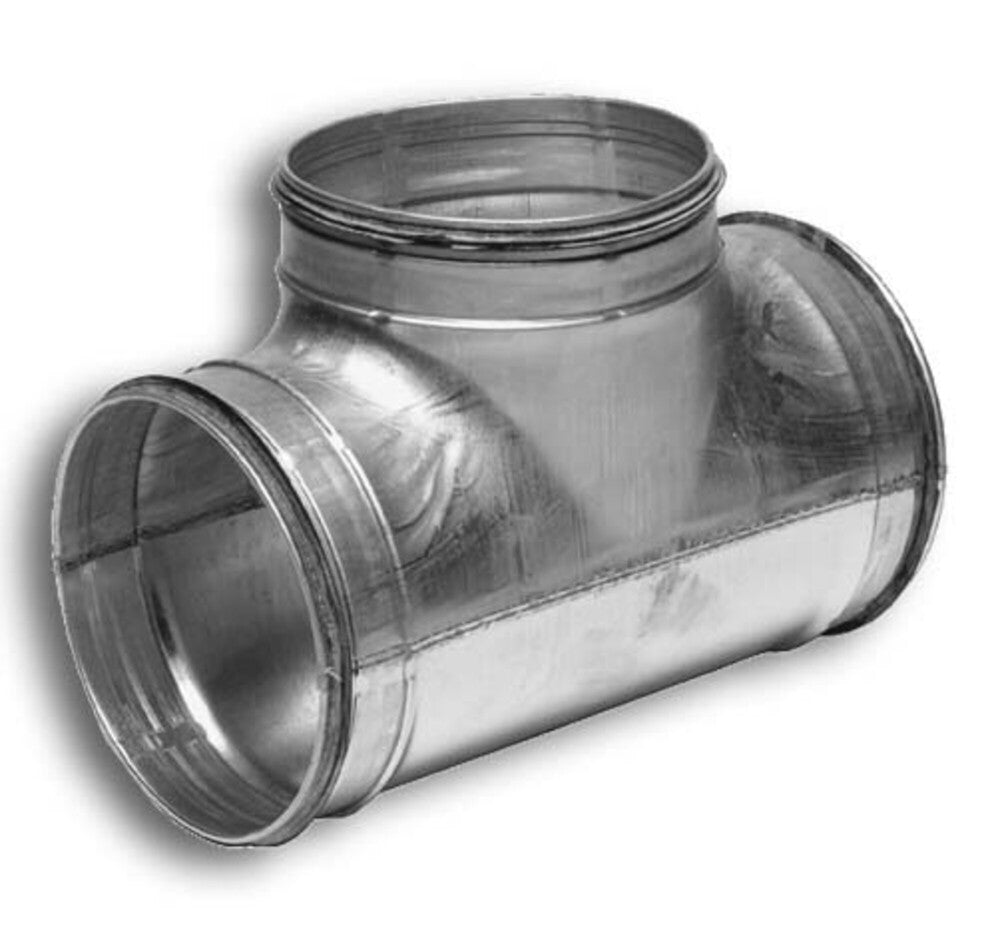

Sanutal T-piece 90° with seal D250x125
Ref. VM-20073157
€44,41
€36,70
incl. VAT
excl. VAT
Specifications
- Reference
- VM-20073156
- Model
- Uninsulated pipe
- Material of the duct
- Steel
- Type of duct material
- Other
- Wall thickness of the sheath
- 0.5mm
- Production type
- Longitudinal welded seam
- Material of the insulation
- Other
- Insulation thickness
- 0mm
- External surface protection
- Sendzimir galvanized
- Internal surface protection
- Sendzimir galvanized
- Exterior color
- Other
- Perforated inner wall
- No
- Type of design
- T-piece
- Type of T fitting reversed (negative)
- No
- Nominal diameter channel connection 1
- 200mm
- Connection 1
- Insertion piece
- Nominal diameter of the connection channel 2
- 200mm
- Connection 2
- Insertion piece
- Nominal diameter of the connection channel 3
- 100mm
- Connection 3
- Insertion piece
- With push profile
- No
- With push clip
- No
- With pre-assembled seal
- Yes
- Eccentric
- No
- Angle
- 90°
- Working length connection 1
- 87mm
- Working length connection 2
- 87mm
- Working length connection 3
- 115mm
- Length of insert connection 1
- 35mm
- Length of insert connection 2
- 35mm
- Length of insert connection 3
- 35mm
- Can be incorporated into concrete
- No
- Antibacterial treatment
- No
- Anti-static finish
- No
Key features
- Model: Uninsulated pipe
- Material of the duct: Steel
- Type of duct material: Other
- Wall thickness of the sheath: 0.5mm
- Production type: Longitudinal welded seam
About this product
Sanutal - tee - 90° - with seal - D200x100
Delivery and returns
Free delivery in Belgium from €65 excl. VAT
In stock · ships in 3-6 working days
14-day right of return
Free delivery in Belgium from €65 excl. VAT, otherwise €9.95. Delivered in 3-6 working days when in stock. Manufacturer warranty according to the product.
Manufacturer warranty
2 year manufacturer warranty
Minimum 2-year manufacturer warranty + Valtieri after-sales included
Secure payment
VAT invoice with every order
incl. 21% VAT · excl. 21% VAT
