Specifications
- Reference
- VM-20019244
- Material connection 1
- Polypropylene
- Material connection 2
- Polypropylene
- Material connection 3
- Polypropylene
- Model
- Y-piece
- Reduced
- Yes
- Nominal diameter connection 1
- DN 90
- Outer diameter of pipe connection 1
- 90mm
- Connection 1
- Insert
- Nominal diameter connection 2
- DN 50
- Outer diameter of pipe connection 2
- 50mm
- Connection 2
- Push-fit sleeve
- Nominal inner diameter connection 3
- DN 90
- Outer diameter connection 3
- 90mm
- Connection 3
- Push-fit sleeve
- EAN code
- 4052836005878
Key features
- Material connection 1: Polypropylene
- Material connection 2: Polypropylene
- Material connection 3: Polypropylene
- Model: Y-piece
- Reduced: Yes
About this product

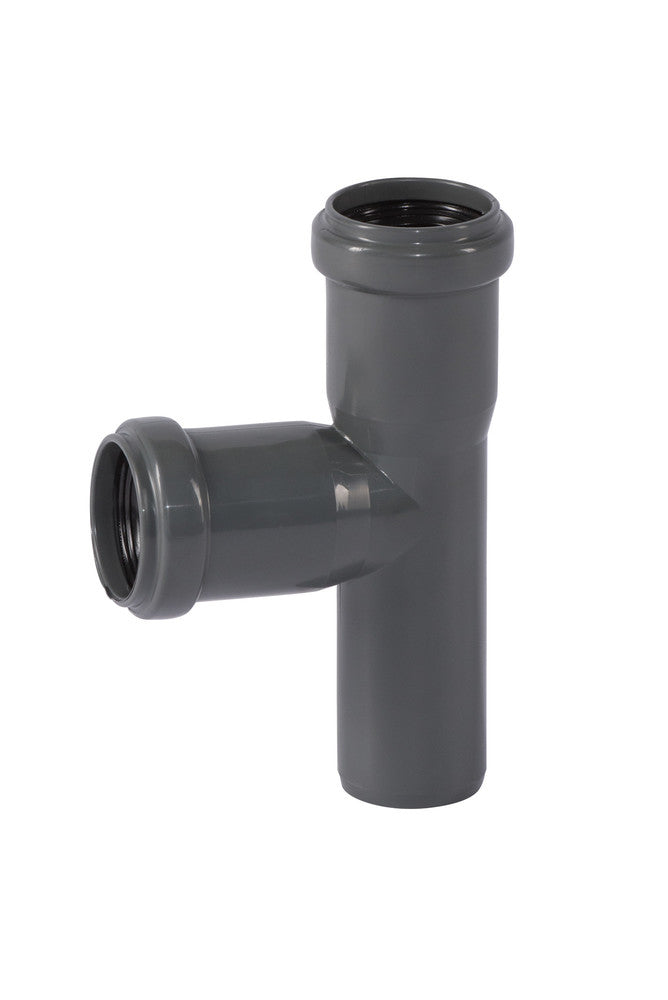

Ostendorf Kunststoffe. HT-Safe PP. Reducing T-piece 87° with triple patented seal that simplifies installation, a PP-H formula that complies with standard DIN 4102 (fire class B1) and DIN EN 1451-1. RAL colour 7043. German quality with 25 year warranty. Application: drain pipes for buildings such as: waste water, rainwater, and ventilation (see also application areas: DIN 1986-4). Marking of pipes and fittings: permanent marking with manufacturer label, nominal diameter and standard (DIN EN 1451-1) + date of manufacture, material, building material class (fire behaviour). (Connecting pieces contain information on angle degrees).
Delivery and returns
Free delivery in Belgium from €65 excl. VAT
In stock · ships in 3-6 working days
14-day right of return
Free delivery in Belgium from €65 excl. VAT, otherwise €9.95. Delivered in 3-6 working days when in stock. Manufacturer warranty according to the product.
Manufacturer warranty
2 year manufacturer warranty
Minimum 2-year manufacturer warranty + Valtieri after-sales included
Secure payment
VAT invoice with every order
incl. 21% VAT · excl. 21% VAT
