Van Marcke go
Vmg built-in ball valve press 20
Ref. VM-20044226
€19,53
€16,14
incl. VAT
excl. VAT
Specifications
- Reference
- VM-20020094
- Housing material
- Brass
- Material quality
- CuZn40Pb2 (CW617N)
- Surface protection of the enclosure
- Without
- Material of the spherical joint
- Other
- Material of the sphere
- Other
- Surface treatment of the ball
- Without
- Material of the primary stem joint
- EPDM
- Material of the pin
- Other
- Nominal diameter connection 1
- DN 20
- Connection 1
- Other
- Contour code connection 1
- Other
- Outer diameter of pipe connection 1
- 26mm
- With coupling connector 1
- No
- Nominal diameter connection 2
- DN 20
- Outer diameter of pipe connection 2
- 26mm
- Connection 2
- Other
- With coupling connector 2
- No
- Contour code connection 2
- Other
- Seal
- EPDM
- Nominal flange pressure
- Other
- Nominal pressure of the item
- PN 10
- With drain opening
- No
- With distribution valve
- No
- With filter
- No
- With non-return valve
- No
- Model
- Straight
- With thermometer
- No
- With insulating shell
- No
- FM tests
- No
- UL approval
- No
- ULC quality label
- No
- LPCB tests
- No
- Fire-resistant
- No
- Average temperature (continuous operation)
- 70°C
- Medically clean
- No
- Grease exempt
- No
- Control
- Handle
- Construction of the enclosure
- 1 piece
- Fully free passage
- Yes
- Working length connection 1
- 25mm
- Length connection 2
- 33mm
- Working length connection 2
- 25mm
- Length connection 1
- 33mm
- Handle height
- 60mm
- Handle length
- 95mm
- VdS certified
- No
- EAN code
- 4025416665915
Key features
- Housing material: Brass
- Material quality: CuZn40Pb2 (CW617N)
- Surface protection of the enclosure: Without
- Material of the spherical joint: Other
- Material of the sphere: Other
About this product

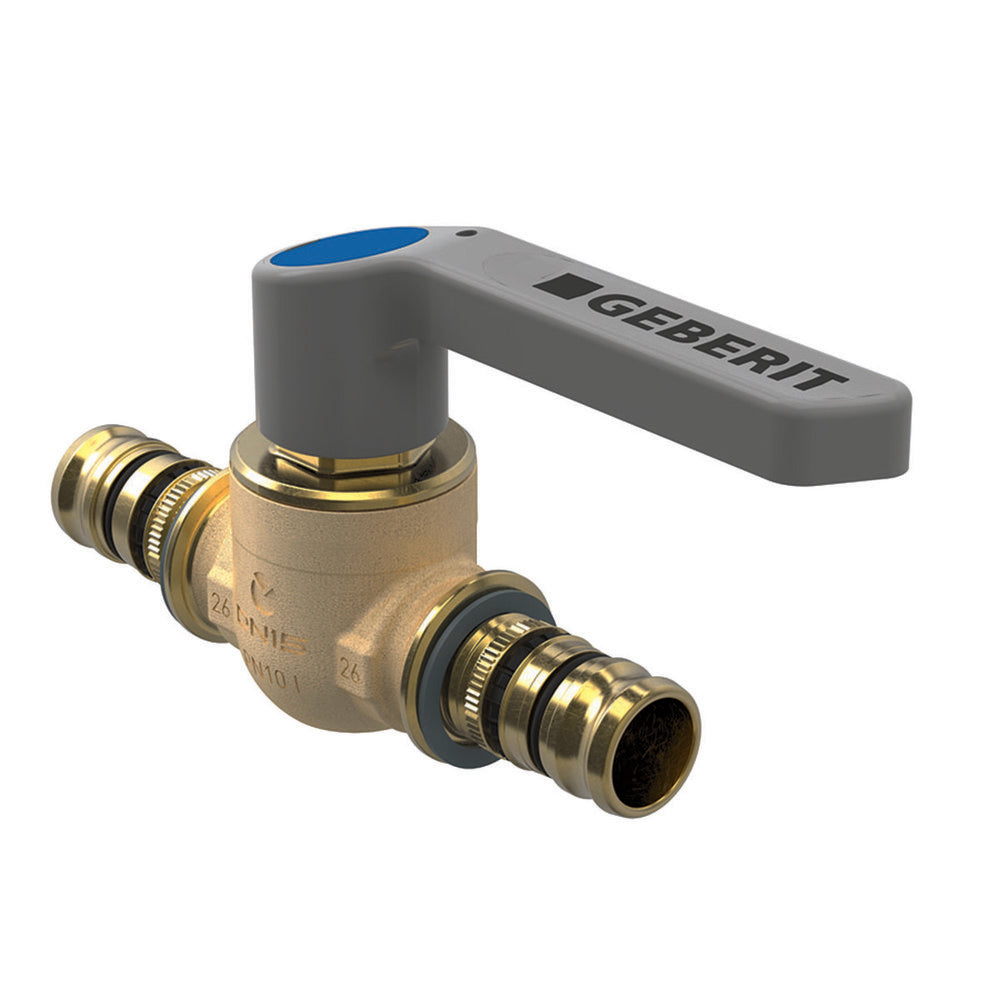

Geberit. Mepla. Ball valve with operating lever. For cold and hot drinking water. For heating water. For cooling water with and without antifreeze. Properties: Not pressed not sealed. Ball and upper part fully flow-through. Lever fixing with screw. Upper part interchangeable. O-ring made of EPDM. Press end with transparent protective cap. Ball made of PPSU. Seal of the upper part made of EPDM. Seals of the balls made of silicone. Material Brass CW617N.
Delivery and returns
Free delivery in Belgium from €65 excl. VAT
In stock · ships in 3-6 working days
14-day right of return
Free delivery in Belgium from €65 excl. VAT, otherwise €9.95. Delivered in 3-6 working days when in stock. Manufacturer warranty according to the product.
Manufacturer warranty
2 year manufacturer warranty
Minimum 2-year manufacturer warranty + Valtieri after-sales included
Secure payment
VAT invoice with every order
incl. 21% VAT · excl. 21% VAT
