Specifications

Reference
VM-20050222
Quality class of the inner layer
PEHD-Xc
Material of the inner layer
Plastic
Material of the outer layer
Plastic
Intermediate layer quality class
Other
Material of the intermediate layer
Aluminium
Quality class of the outer layer
PEHD-Xc
Fiberglass-reinforced
No
Leak stopper
Yes
Nominal diameter
DN 12
Wall thickness
2mm
Outer diameter of the pipe
16mm
System-bound
Yes
Maximum operating pressure at 20 °C
16bar
Max. operating pressure at max. average temperature
16bar
Maximum average temperature (temporary)
95°C
Wall roughness
0.007mm
Flexible
Yes
Expansion coefficient
0.025mm/(m.K)
Suitable for protrusion mounting
Yes
Minimum bending radius
48mm
Min. bending radius without tools
48mm
Pipe color
White
With outer sleeve
No
With heating tape
No
Outer diameter of the sleeve
0mm
With thermal insulation
No
Thickness of the thermal insulation
0mm
Outer diameter of the thermal insulation
0mm
Valeur lambda
0.43W/(m.K)
External rectangular insulation width
0mm
Closed
No
Rectangular exterior height insulation
0mm
UV-resistant
No
Halogen-free
Yes
Water content
0.113l/m
DIN-CERTCO certificate
No
Certified SVGW/SSIGE
No
With TÜV approval
No
DVGW quality label for gas
No
DVGW quality label for water
Yes
Compliant with NF 545
Yes
KOMO quality mark
Yes
Approval according to BBR/EKS
No
EAN code
5414764023512

Key features

  • Quality class of the inner layer: PEHD-Xc
  • Material of the inner layer: Plastic
  • Material of the outer layer: Plastic
  • Intermediate layer quality class: Other
  • Material of the intermediate layer: Aluminium

About this product

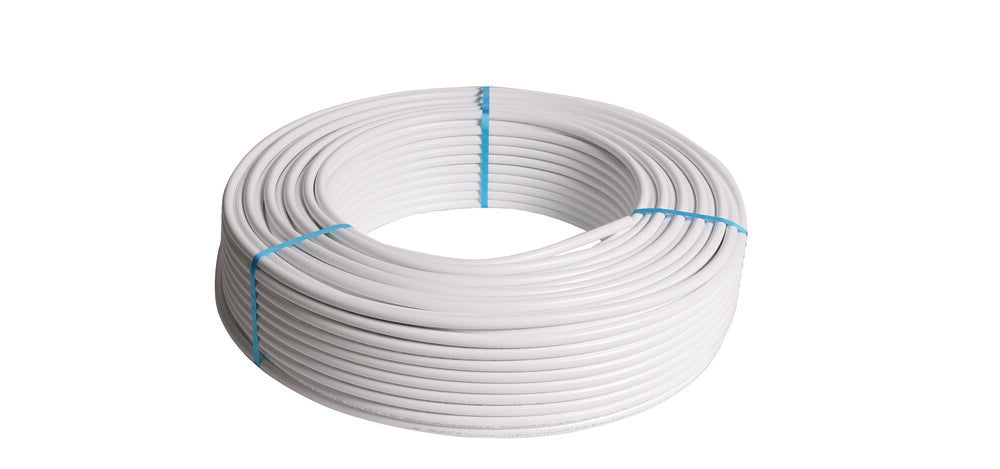

Henco. Standard. Ø16x2 200m. The Henco multilayer pipe offers all the advantages of metal and plastic: Longitudinally seamlessly welded aluminium inner core of the pipe 100% oxygen-tight. Low linear expansion coefficient, comparable to metal. Fully corrosion-resistant, also against chemical and electrochemical influences. Sound-damping, characteristic of a plastic pipe. Inner and outer pipe made of electron-beam cross-linked polyethylene. High resistance to pressure and temperature. Smooth surface, low pressure loss. As light as plastic pipe. Flexible, easy to bend. Even at low temperatures the pipe retains its bent shape.
