TEC7
Waterproof epoxy mortar FLOOR7 5KG
Ref. D-64518
€91,22
€75,39
incl. VAT
excl. VAT
Specifications
- Reference
- VM-20049733
- Material quality connection 1
- Other
- Material connection 1
- PVDF
- Surface treatment connection 1
- Untreated
- Surface protection connection 1
- Untreated
- Material connection 2
- PVDF
- Surface protection connection 2
- Untreated
- Material quality connection 2
- Other
- Surface treatment connection 2
- Untreated
- Material connection 3
- PVDF
- Material quality connection 3
- Other
- Surface treatment connection 3
- Untreated
- Surface protection connection 3
- Untreated
- Model
- T-piece
- Flow type
- No
- Angle
- 90°
- Reduced
- No
- System-bound
- Yes
- Nominal diameter connection 1
- DN 32
- Outer diameter of pipe connection 1
- 40mm
- Wall thickness connection 1
- 0.9mm
- Connection 1
- Compression sleeve
- Nominal diameter connection 2
- DN 32
- Contour code connection 1
- BE
- Outer diameter of pipe connection 2
- 40mm
- Wall thickness connection 2
- 0.9mm
- Connection 2
- Compression sleeve
- Contour code connection 2
- BE
- Nominal inner diameter connection 3
- DN 32
- Outer diameter connection 3
- 40mm
- Connection 3
- Compression sleeve
- Contour code connection 2
- BE
- Flange standard
- Other
- Sealing material
- EPDM
- Fitting main color
- Black
- Length connection 1
- 75mm
- Tensile-resistant
- No
- Working length connection 1
- 39mm
- Length connection 2
- 75mm
- Working length connection 2
- 39mm
- Working length connection 3
- 39mm
- Length connection 3
- 75mm
- Wrench size
- 0mm
- Universal wrench diameter
- 0mm
- Max. operating pressure at max. average temperature
- 10bar
- Maximum operating pressure at 20 °C
- 10bar
- Ring stiffness class
- Other
- Wall thickness connection 3
- 0.9mm
- With distribution valve
- No
- With sealing material
- Yes
- With air vent
- No
- With thermal insulation
- No
- With stop
- Yes
- With connection indicator
- No
- Closed
- No
- LPCB tests
- No
- FM tests
- No
- ULC quality label
- No
- UL approval
- No
- DIN-CERTCO certificate
- No
- VdS certified
- No
- With TÜV approval
- No
- DVGW quality label for gas
- No
- KIWA quality mark
- Yes
- DVGW quality label for water
- Yes
- KOMO quality mark
- Yes
- QA gas equipment
- No
- Approval according to BBR/EKS
- No
- EAN code
- 5414764042100
Key features
- Material quality connection 1: Other
- Material connection 1: PVDF
- Surface treatment connection 1: Untreated
- Surface protection connection 1: Untreated
- Material connection 2: PVDF
About this product

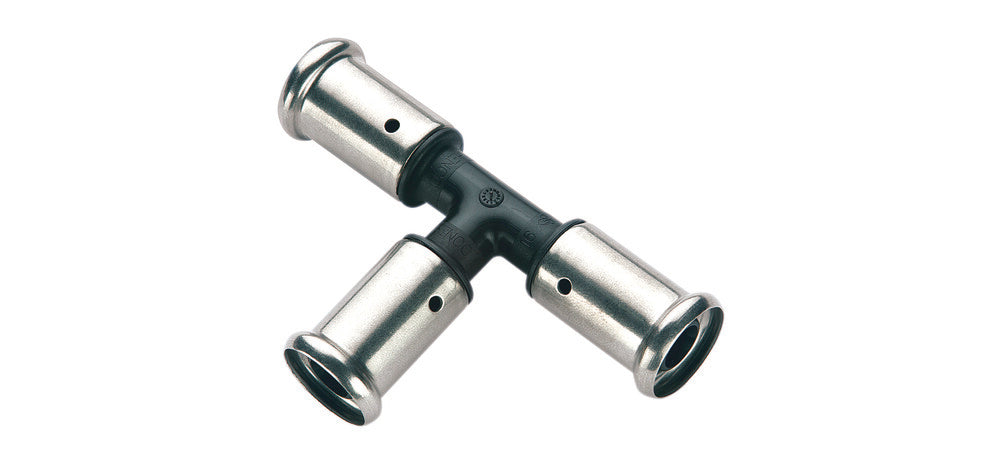

Henco PVDF T-piece 32-32-32, T-connector, PVDF material, surface treatment untreated, surface protection untreated
Delivery and returns
Free delivery in Belgium from €65 excl. VAT
In stock · ships in 3-6 working days
14-day right of return
Free delivery in Belgium from €65 excl. VAT, otherwise €9.95. Delivered in 3-6 working days when in stock. Manufacturer warranty according to the product.
Manufacturer warranty
2 year manufacturer warranty
Minimum 2-year manufacturer warranty + Valtieri after-sales included
Secure payment
VAT invoice with every order
incl. 21% VAT · excl. 21% VAT
