TEC7
Waterproof epoxy mortar FLOOR7 5KG
Ref. D-64518
€96,03
€79,36
incl. VAT
excl. VAT
Specifications
- Reference
- VM-20052261
- Material connection 1
- PVDF
- Surface treatment connection 1
- Untreated
- Surface protection connection 1
- Untreated
- Material connection 2
- PVDF
- Surface protection connection 2
- Untreated
- Surface treatment connection 2
- Untreated
- Material connection 3
- PVDF
- Surface treatment connection 3
- Untreated
- Model
- T-piece
- Flow type
- No
- Angle
- 90°
- Reduced
- Yes
- System-bound
- Yes
- Outer diameter of pipe connection 1
- 16mm
- Wall thickness connection 1
- 0.7mm
- Connection 1
- Compression sleeve
- Contour code connection 1
- TH
- Outer diameter of pipe connection 2
- 20mm
- Wall thickness connection 2
- 0.7mm
- Connection 2
- Compression sleeve
- Contour code connection 2
- TH
- Outer diameter connection 3
- 16mm
- Connection 3
- Compression sleeve
- Contour code connection 2
- TH
- Flange standard
- Other
- Sealing material
- EPDM
- Fitting main color
- Black
- Length connection 1
- 50mm
- Tensile-resistant
- No
- Working length connection 1
- 23mm
- Length connection 2
- 48mm
- Working length connection 2
- 21mm
- Working length connection 3
- 23mm
- Length connection 3
- 50mm
- Wrench size
- 0mm
- Universal wrench diameter
- 0mm
- Maximum operating pressure at 20 °C
- 16bar
- Ring stiffness class
- Other
- Wall thickness connection 3
- 0.7mm
- With distribution valve
- No
- With sealing material
- Yes
- With air vent
- No
- With thermal insulation
- No
- With stop
- Yes
- Closed
- No
- LPCB tests
- No
- FM tests
- No
- ULC quality label
- No
- UL approval
- No
- DIN-CERTCO certificate
- No
- VdS certified
- No
- With TÜV approval
- No
- DVGW quality label for gas
- No
- KIWA quality mark
- Yes
- DVGW quality label for water
- Yes
- KOMO quality mark
- Yes
- QA gas equipment
- No
- Approval according to BBR/EKS
- No
- EAN code
- 5414764011816
Key features
- Material connection 1: PVDF
- Surface treatment connection 1: Untreated
- Surface protection connection 1: Untreated
- Material connection 2: PVDF
- Surface protection connection 2: Untreated
About this product

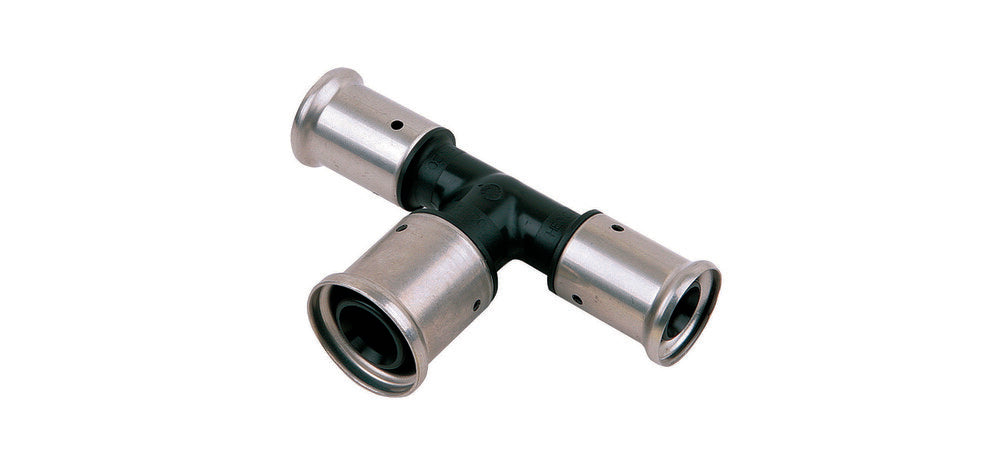

Henco. PVDF. Te-Réduit, 26-26-16.
