Systempex
SYSTEMPEX montagebeugel koper D15 x 1/2"F asafstand 150mm
Ref. VM-20004531
€18,72
€15,47
incl. VAT
excl. VAT
Specifications
- Reference
- VM-20049836
- Material connection 1
- Brass
- Material quality connection 1
- CuZn40Pb2 (CW617N)
- Surface treatment connection 1
- Untreated
- Surface protection connection 1
- Untreated
- Material connection 2
- Brass
- Surface treatment connection 2
- Untreated
- Material quality connection 2
- CuZn40Pb2 (CW617N)
- Surface protection connection 2
- Untreated
- Shape
- Elbow
- Elbow radius
- 16mm
- Eccentric
- No
- Reduced
- No
- System-bound
- Yes
- Outer diameter of pipe connection 1
- 16mm
- Connection 1
- Compression sleeve
- Contour code connection 1
- TH
- Nominal diameter connection 2
- 1/2 inch (15)
- Connection 2
- Parallel female gas thread (BSPP)
- Sealing material
- EPDM
- With stop
- Yes
- Length
- 61mm
- Tensile-resistant
- No
- Length connection 1
- 55mm
- Length connection 2
- 36mm
- Working length connection 1
- 0mm
- Working length connection 2
- 36mm
- Wrench size
- 0mm
- Universal wrench diameter
- 0mm
- Maximum operating pressure at 20 °C
- 16bar
- With thermal insulation
- No
- Ring stiffness class
- Other
- With sealing material
- Yes
- Closed
- No
- With distribution valve
- No
- With air vent
- No
- FM tests
- No
- LPCB tests
- No
- UL approval
- No
- ULC quality label
- No
- VdS certified
- No
- DIN-CERTCO certificate
- No
- With TÜV approval
- No
- DVGW quality label for gas
- No
- DVGW quality label for water
- Yes
- QA gas equipment
- No
- KIWA quality mark
- Yes
- Approval according to BBR/EKS
- No
- KOMO quality mark
- Yes
- EAN code
- 5414764039353
Key features
- Material connection 1: Brass
- Material quality connection 1: CuZn40Pb2 (CW617N)
- Surface treatment connection 1: Untreated
- Surface protection connection 1: Untreated
- Material connection 2: Brass
About this product

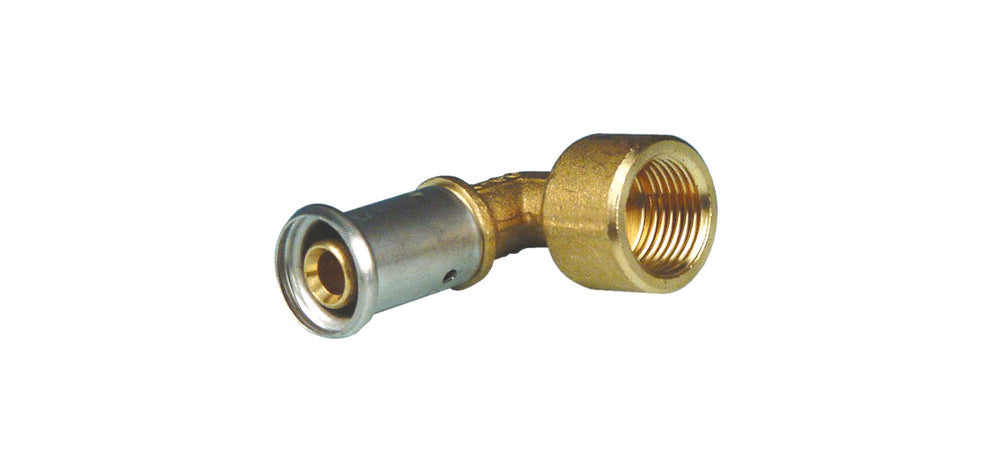

Henco. 90° elbow in brass, 3/4F.
Delivery and returns
Free delivery in Belgium from €65 excl. VAT
In stock · ships in 3-6 working days
14-day right of return
Free delivery in Belgium from €65 excl. VAT, otherwise €9.95. Delivered in 3-6 working days when in stock. Manufacturer warranty according to the product.
Manufacturer warranty
2 year manufacturer warranty
Minimum 2-year manufacturer warranty + Valtieri after-sales included
Secure payment
VAT invoice with every order
incl. 21% VAT · excl. 21% VAT
