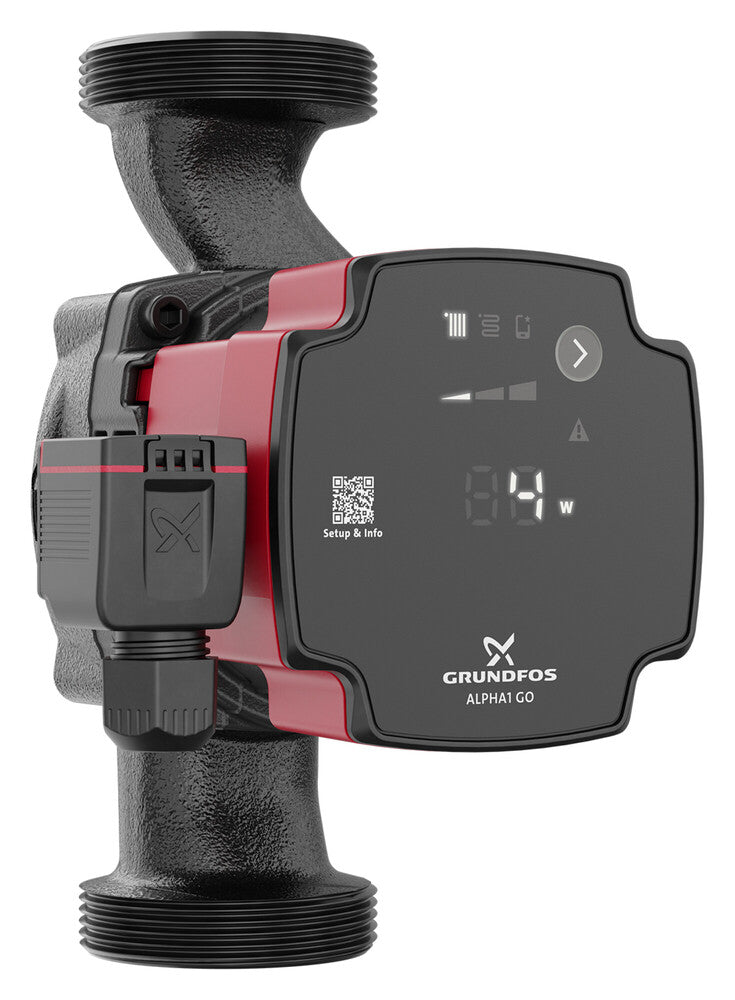

Grundfos Alpha1 GO 32-40 circulatiepomp 180 mm

Grundfos Alpha1 GO 32-40 circulation pump 180 mm

Name: Grundfos Alpha1 GO 32-40 circulation pump 180 mm
Brand: Grundfos
SKU: VM-20070530
Price: 308.02 EUR
Availability: InStock

Reference VM-20070530 EAN code 5715467404111

€308,02 €254,56

incl. 21% VAT · €254,56 excl. VAT excl. 21% VAT · €308,02 incl. VAT

In stock · ships in 3-6 working days

Estimated delivery 3-6 working days after ordering

Total €308,02 €254,56

Quick pick

Quote for pros

Free delivery in Belgium from €65 excl. VAT
14-day right of return
2 year manufacturer warranty
VAT invoice with every order

Secure payment

Not sure this is the right part?

+32 2 886 10 49

Mon-Fri 8am-5pm

Send us your material list

Specifications

Reference: VM-20070530
Quality of the material of the pump case: Fonte EN-GJL-150 (GG 15)
Quality class of the fan rotor material: Other
Material of the pump housing: Cast iron
Material of the fan/pump rotor: Other
Volumetric flow (BEP): 1.65m³/h
Max. delivery volume: 2.7m³/h
Back‑pressure height according to volumetric flow (BEP): 18.63kPa
Max. operating pressure: 10bar
Max. delivery head: 4m
Electrical connection: Fiche
Pompe double: No
Frequency: 50 Hz
Rated current: 0.3A
Recorded motor power (P1): 0.027kW
Energy efficiency index (EEI): 0.2
Pump circuit: Other
Engine speed adjustment: Built-in
Rotation speed: 35181/min
Type of speed control: Continuous
Communication: Without
Standard radio Bluetooth: No
Standard radio WLAN 802.11: No
Standard radio 5G: No
Signal d'interface 0-10 V / 2-10 V: No
Signal d'interface 0-20 mA / 4-20 mA: No
PT100 / PT1000 / PTC interface: No
Standard radio 4G: No
PWM interface: No
Interface pulse counter: No
With RS-485 communication interface: No
Switch contact without potential: No
Protocol supported for KNX: No
Protocol supported for EtherNet/IP: No
Protocol supported for PROFINET IO: No
Protocol supported for CAN / CANOpen: No
Protocol supported for Modbus TCP: No
Protocol supported for Modbus RTU: No
Supply side connection: Parallel male gas thread (BSPP)
Diameter connection supply side: 2 inch (50)
Compression stage with flange on inlet side: PN 10
Diameter of the connection on the pressure side: 2 inch (50)
Standard connection, inlet side: ISO 228-1
Type connection side outlet: Parallel male gas thread (BSPP)
Pressure level for flasque outlet connection: PN 10
Type of connection on the outlet side: ISO 228-1
Shape of the coupling: Other
Length of embedding: 180mm
Protection class (IP): IP44
EAN code: 5715467404111

Key features

Quality of the material of the pump case: Fonte EN-GJL-150 (GG 15)
Quality class of the fan rotor material: Other
Material of the pump housing: Cast iron
Material of the fan/pump rotor: Other
Volumetric flow (BEP): 1.65m³/h

About this product

Grundfos - Alpha1 GO - 32-40 - pump de circulation - fonte - pression max 40 dm - pression service 10 bar - fittingement G 2" - pression per étage PN10 - fréquence d'supply 50/60 Hz - 1 x 220-240V - indice de protection IP44 - entraxe 180 mm

Delivery and returns

Free delivery in Belgium from €65 excl. VAT

In stock · ships in 3-6 working days

14-day right of return

Free delivery in Belgium from €65 excl. VAT, otherwise €9.95. Delivered in 3-6 working days when in stock. Manufacturer warranty according to the product.

Manufacturer warranty

2 year manufacturer warranty

Minimum 2-year manufacturer warranty + Valtieri after-sales included

Secure payment

VAT invoice with every order

incl. 21% VAT · excl. 21% VAT
