Dinak
Dinak DW 043 bend 87° D180 STAINLESS STEEL 316L/304 0,4mm 3cm insulation
Ref. VM-20023988
€308,31
€254,80
incl. VAT
excl. VAT
Specifications
- Reference
- VM-20023985
- Material of the inner pipe
- Stainless steel
- Material of the outer pipe
- Stainless steel
- Quality class of the inner pipe
- Stainless steel 316 L (1.4404)
- Shape
- Elbow
- Maximum average temperature (continuous operation)
- 600°C
- Positive (overpressure)
- No
- Wet (condensed)
- No
- Negative (vacuum)
- No
- Dry (non-condensed)
- No
- Protection of the surfaces of the internal tube
- Other
- Surface protection outer pipe
- Other
- Surface treatment
- Polished
- External diameter connection 1
- 130mm
- Internal diameter connection 2
- 130mm
- Elbow angle
- 87°
- Type elbow
- Segment elbow
- Insulation thickness
- 30mm
- Production method of the inner pipe
- Longitudinal welded seam
- Production method of the outer pipe
- Longitudinal welded seam
- Wall thickness of the inner pipe
- 0.4mm
- Wall thickness external pipe
- 0.4mm
- Internal pipe connection - internal pipe
- Socket
- External pipe connection with lip ring
- No
- External pipe connection with tightening band
- No
- Length connection 1
- 40mm
- Length connection 2
- 40mm
- Working length connection 1
- 40mm
- Working length connection 2
- 40mm
- EAN code
- 8432630318798
Key features
- Surface treatment: Polished
- Material of the inner pipe: Stainless steel
- Material of the outer pipe: Stainless steel
- Quality class of the inner pipe: Stainless steel 316 L (1.4404)
- Shape: Elbow
About this product

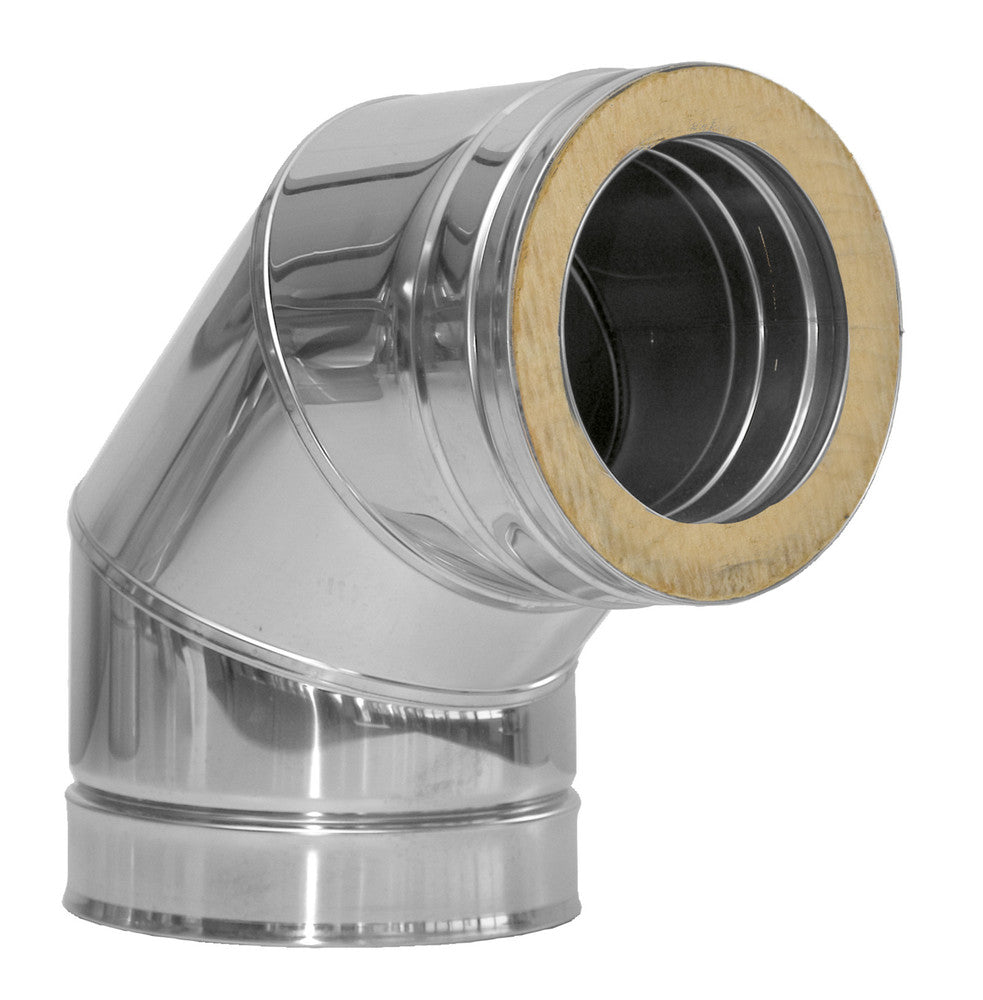

Dinak DW043 elbow 87° D100 en stainless steel 316L/304 0,4/0,4mm. 3 cm d'isolation with seal.
Delivery and returns
Free delivery in Belgium from €65 excl. VAT
In stock · ships in 3-6 working days
14-day right of return
Free delivery in Belgium from €65 excl. VAT, otherwise €9.95. Delivered in 3-6 working days when in stock. Manufacturer warranty according to the product.
Manufacturer warranty
2 year manufacturer warranty
Minimum 2-year manufacturer warranty + Valtieri after-sales included
Secure payment
VAT invoice with every order
incl. 21% VAT · excl. 21% VAT
