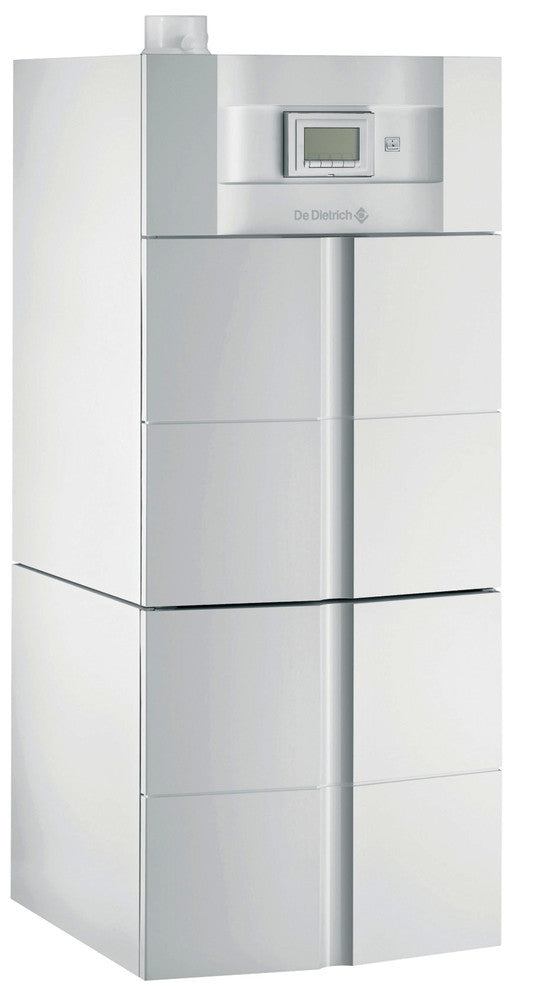

De Dietrich Twineo EGC25/V100 SL condensatiegasketel vloer 25,5 kW boiler

De Dietrich Twineo EGC25/V100 SL condensing gas boiler floor 25,5 kW water heater

Name: De Dietrich Twineo EGC25/V100 SL condensing gas boiler floor 25,5 kW water heater
Brand: De Dietrich
SKU: VM-20048745
Price: 3689.56 EUR
Availability: InStock

Reference VM-20048745 EAN code 5400225040662

€3.689,56 €3.049,22

incl. 21% VAT · €3.049,22 excl. VAT excl. 21% VAT · €3.689,56 incl. VAT

In stock · ships in 3-6 working days

Estimated delivery 3-6 working days after ordering

Total €3.689,56 €3.049,22

Quick pick

Quote for pros

Free delivery in Belgium from €65 excl. VAT
14-day right of return
2 year manufacturer warranty
VAT invoice with every order

Secure payment

Not sure this is the right part?

+32 2 886 10 49

Mon-Fri 8am-5pm

Send us your material list

Specifications

Reference: VM-20048745
Closed finish: Yes
Open and closed finish: No
Material, heat exchanger: Aluminium
Nominal useful output 80-60 °C: 24.8kW
Nominal output 50-30 °C: 35.9kW
Suitable for low-calorific natural gas: Standard factory setting
Suitable for propane: Not suitable
Suitable for butane: Not suitable
Suitable for domestic fuel oil (HBO I): Not suitable
Fully assembled for delivery: No
Modulated burner control: No
Maximum temperature of the inlet water (operating temperature): 90°C
Minimum setback temperature: 20°C
Max. operating pressure: 3bar
Maximum upstream gas pressure: 100mbar
Minimum upstream gas pressure: 20mbar
Water side resistance at dT 20 °C: 60kPa
Available hot water network volume at 60 °C: 18l/min
Sanitary hot water reservoir: 100l
Rated voltage: 230V
Integrated pump switch: No
Integrated circulation pump: Yes
Integrated ambient conditions controller: No
Integrated expansion vessel: Yes
Integrated overpressure valve: No
Supply connection: External thread
Nominal diameter of the supply: 3/4 inch (20)
Return connection: External thread
Nominal diameter return: 3/4 inch (20)
Connection, fuel: External thread
Nominal inner diameter fuel: 1/2 inch (15)
Nominal diameter of the air duct: 100mm
Connection, air duct: Pearled edge
Nominal diameter of the duct, flue gas discharge: 60mm
Connection, flue gas discharge: Pearled edge
Cold drinking water connection: Other
Hot water connection: Other
Condensate connection: Flexible
Diameter of condensate thread: DN 20
EAN code: 5400225040662

Key features

Closed finish: Yes
Material, heat exchanger: Aluminium
Nominal useful output 80-60 °C: 24.8kW
Nominal output 50-30 °C: 35.9kW
Suitable for low-calorific natural gas: Standard factory setting

About this product

De Dietrich Twineo EGC25/V100SL gas condensing boiler 25,5kW, closed finish, aluminium heat exchanger, nominal usable power 24,8kW, nominal performance 35,9kW, suitable for low‑calorific natural gas, standard factory setting. Part of the Air‑conditioning accessories range.
