Bosch
Bosch Condens 5300i W GC5300iW 20/25 C 23 chaudière à condensation mixte mural
Ref. VM-20066533
€513,04
€424,00
incl. VAT
excl. VAT
Specifications
- Reference
- VM-20062802
- Material, heat exchanger
- Stainless steel
- Closed finish
- Yes
- Open and closed finish
- Yes
- Condensation
- Yes
- Nominal output 50-30 °C
- 32.8kW
- Nominal useful output 80-60 °C
- 30kW
- Nominal load, higher value
- 39.96kW
- Nominal load, lower value
- 36kW
- Suitable for low-calorific natural gas
- Standard factory setting
- Suitable for propane
- Not suitable
- Suitable for butane
- Not suitable
- Suitable for methane
- Not suitable
- Ignition flame
- No
- Conversion kit available
- No
- On/off control signal
- Yes
- High/low control signal
- No
- OpenTherm control signal
- Yes
- Control signal 0-10 V
- Yes
- High/low burner regulation
- No
- Modulated burner control
- Yes
- Maximum temperature of the inlet water (operating temperature)
- 80°C
- Minimum setback temperature
- 20°C
- Minimum working pressure
- 0.5bar
- Energy saver included
- Yes
- Maximum upstream gas pressure
- 30mbar
- Minimum upstream gas pressure
- 20mbar
- Water side resistance at dT 20 °C
- 27kPa
- Second outlet connection
- No
- Nominal power, sanitary water
- 35kW
- Nominal power low value, sanitary water
- 36kW
- Nominal power high value, sanitary water
- 39.96kW
- Flow rate ECS according to EN13203-1
- 16.7l/min
- Faucet base
- 1.2l/min
- Available hot water network volume at 60 °C
- 10l/min
- Rated voltage
- 196V253V
- Frequency
- 50 Hz
- Sanitary hot water reservoir
- 1l
- Integrated distribution/filling valve
- No
- Integrated pump switch
- Yes
- Built-in manometer
- Yes
- Integrated ambient conditions controller
- Yes
- Integrated expansion vessel
- Yes
- Integrated overpressure valve
- Yes
- Built-in inlet combination
- No
- Height
- 700mm
- Depth
- 285mm
- Width
- 395mm
- Supply connection
- Male thread (metric)
- Nominal diameter of the supply
- 3/4 inch (20)
- Return connection
- Male thread (metric)
- Nominal diameter return
- 3/4 inch (20)
- Connection, fuel
- Male thread (metric)
- Nominal inner diameter fuel
- 3/4 inch (20)
- Connection, air duct
- Insertion piece
- Nominal diameter of the air duct
- 100mm
- Connection, flue gas discharge
- Insertion piece
- Nominal diameter of the duct, flue gas discharge
- 60mm
- Cold drinking water connection
- Male thread (metric)
- Nominal diameter, cold drinking water
- 1/2 inch (15)
- Hot water connection
- Male thread (metric)
- Nominal diameter of the hot water connection
- 1/2 inch (15)
- Condensate connection
- Other
- Diameter of condensate thread
- DN 32
- Diameter outside of condensate pipe
- 21.8mm
- SEER (Seasonal Energy Efficiency Ratio) in cold conditions
- 98.9
- SEER (Seasonal Energy Efficiency Ratio) in standard conditions
- 94
- SEER (Seasonal Energy Efficiency Ratio) in hot conditions
- 88.1
- Energy efficiency of hot water
- 87%
- Capacity profile
- XL
- Useful heat emission at nominal heat in high temperature operation (P4)
- 30kW
- Useful efficiency at nominal heat in high-temperature operation (n4)
- 88.1%
- Energy efficiency of room heating
- 94%
- Additional full-load electricity consumption (Elmax)
- 0.06kW
- Heat loss in standby (Pstby)
- 0.04kW
- Additional standby electricity consumption (Psb)
- 0kW
- EAN code
- 8022945024868
Key features
- Height: 700mm
- Material, heat exchanger: Stainless steel
- Closed finish: Yes
- Open and closed finish: Yes
- Condensation: Yes
About this product

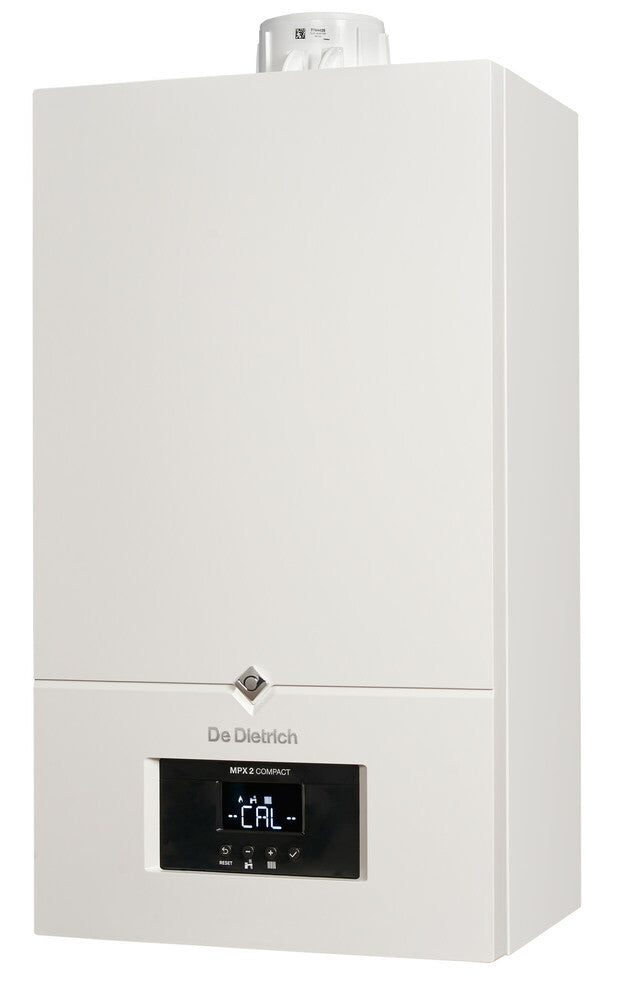

De Dietrich. MPX2. Compact. Condensing gas wall-mounted boiler. The 24/28 MI model is available in 2 versions: propane or natural gas. Easy start-up. Self-adjusting electronic gas/air system. Boiler calibrates itself for approximately 2 minutes. No more combustion adjustment, only combustion control. Always optimal adjustment, more reliability and guaranteed continued high efficiency. Particularly suitable for coupling with hybrid, suitable for 20% hydrogen blending. 1 direct circuit. Stainless steel coil exchanger. Plug & Play connector. Backlit LCD display 3,2”. Brass hydroblock. Basis BDR controls platform. Code key for parameter storage. Domestic hot water temperature sensor. Modulation ratio 1:8. Renewed, easier to dismantle siphon. No external drain manifold required anymore. Double flow sensor. ErP Ready.
Delivery and returns
Free delivery in Belgium from €65 excl. VAT
In stock · ships in 3-6 working days
14-day right of return
Free delivery in Belgium from €65 excl. VAT, otherwise €9.95. Delivered in 3-6 working days when in stock. Manufacturer warranty according to the product.
Manufacturer warranty
2 year manufacturer warranty
Minimum 2-year manufacturer warranty + Valtieri after-sales included
Secure payment
VAT invoice with every order
incl. 21% VAT · excl. 21% VAT
