Specifications

Reference
VM-20026162
Quality of the material of the pump case
Stainless steel RVS 304 (1.4301)
Material of the pump housing
Stainless steel
Material of the fan/pump rotor
Other
Max. delivery volume
3.5m³/h
Max. delivery head
70m
Electrical connection
Connection box
Pompe double
No
Rated voltage
230V
Frequency
50/60 Hz
Rated current
0.32A
Recorded motor power (P1)
35kW
Energy efficiency index (EEI)
0.18
Pump circuit
Other
Engine speed adjustment
Built-in
Rotation speed
01/min
Type of speed control
Continuous
Average temperature (continuous operation)
-10°C110°C
Supply side connection
Male thread (metric)
Diameter connection supply side
35.5mm
Compression stage with flange on inlet side
PN 10
Diameter of the connection on the pressure side
1 1/4 inch (32)
Diameter connection return side
99.1mm
Length of embedding
180mm
Protection class (IP)
IPX5
EAN code
8059893165589

Key features

  • Quality of the material of the pump case: Stainless steel RVS 304 (1.4301)
  • Material of the pump housing: Stainless steel
  • Material of the fan/pump rotor: Other
  • Max. delivery volume: 3.5m³/h
  • Max. delivery head: 70m

About this product

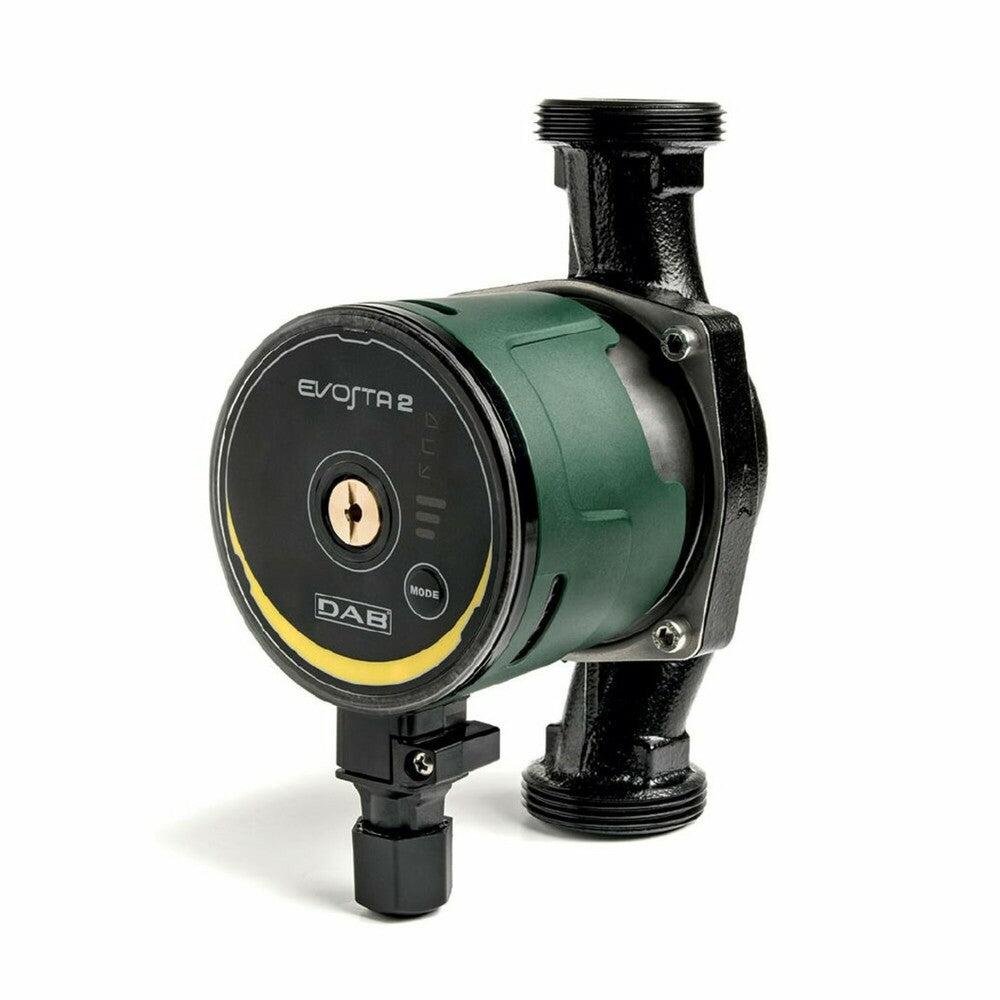

Dab. Evosta 2. Energy-saving electronic circulation pump for circulating water in heating and cooling installations in small and medium-sized residential units. Advantages: EVOSTA 2 represents a new range of DAB circulation pumps that combine the robustness of mechanical circulation pumps with the advantages of electronic models. The synchronous permanent magnet motor, the frequency converter, an efficiency index EEI 0,18 Evosta 2, combined with protection level IPX5 and the integrated bleed plug make the new Evosta series one of the best products in its class in terms of efficiency and reliability.

Delivery and returns

Free delivery in Belgium from €65 excl. VAT

In stock · ships in 3-6 working days

14-day right of return

Free delivery in Belgium from €65 excl. VAT, otherwise €9.95. Delivered in 3-6 working days when in stock. Manufacturer warranty according to the product.

Manufacturer warranty

2 year manufacturer warranty

Minimum 2-year manufacturer warranty + Valtieri after-sales included

Secure payment

VAT invoice with every order

incl. 21% VAT · excl. 21% VAT
