Specifications
- Reference
- VM-20027399
- Quality class of the inner layer
- PEHD-Xc
- Material of the inner layer
- Plastic
- Material of the outer layer
- Plastic
- Intermediate layer quality class
- Other
- Material of the intermediate layer
- Aluminium
- Quality class of the outer layer
- PEHD-Xc
- Fiberglass-reinforced
- No
- Leak stopper
- No
- Nominal diameter
- DN 50
- Wall thickness
- 4.5mm
- Outer diameter of the pipe
- 63mm
- System-bound
- Yes
- Intermediate layer thickness
- 4.5mm
- Maximum operating pressure at 20 °C
- 10bar
- Max. operating pressure at max. average temperature
- 10bar
- Maximum average temperature (temporary)
- 95°C
- Wall roughness
- 0.007mm
- Flexible
- Yes
- Expansion coefficient
- 0.024mm/(m.K)
- Suitable for protrusion mounting
- Yes
- Minimum bending radius
- 0mm
- Min. bending radius without tools
- 0mm
- Pipe color
- White
- With outer sleeve
- No
- Color of the sheath
- White
- With heating tape
- No
- With thermal insulation
- No
- External rectangular insulation width
- 0mm
- Closed
- No
- Rectangular exterior height insulation
- 0mm
- UV-resistant
- No
- Halogen-free
- Yes
- DIN-CERTCO certificate
- No
- With TÜV approval
- No
- DVGW quality label for gas
- Yes
- DVGW quality label for water
- Yes
- Compliant with NF 545
- Yes
- KOMO quality mark
- Yes
- Approval according to BBR/EKS
- No
- EAN code
- 3430650331426
Key features
- Quality class of the inner layer: PEHD-Xc
- Material of the inner layer: Plastic
- Material of the outer layer: Plastic
- Intermediate layer quality class: Other
- Material of the intermediate layer: Aluminium
About this product

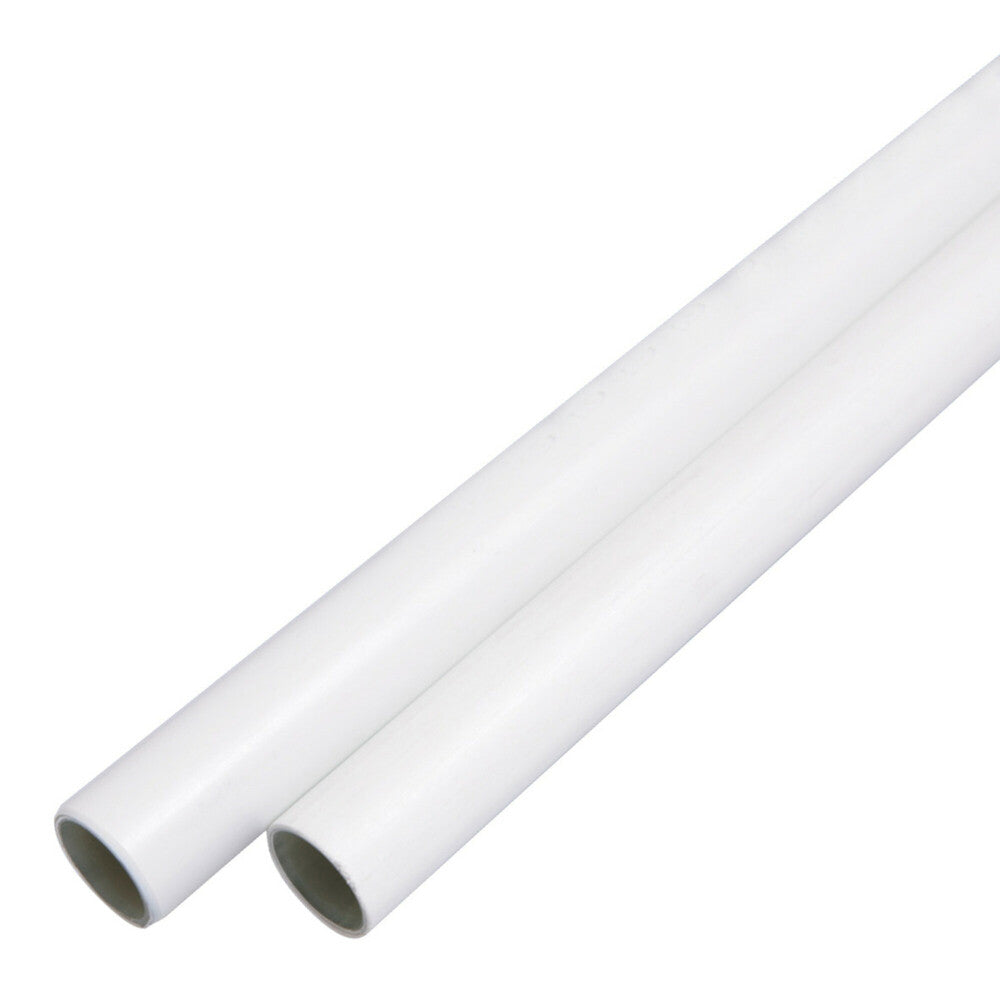

Comap. Multiskin 4 multilayer pipes. Multiskin 4 is a complete range of multilayer pipes with D from 14-63 mm. They are made of PEX/AL/PEX with a strong aluminium core for better resistance to high temperatures and pressures. Multiskin 4 is suitable for all sanitary and heating applications. The pipes can be used both for new-build and for renovations. They can be installed concealed or exposed. Advantages: temperature- and pressure-resistant, low thermal expansion, non-corrosive, dimensionally stable, wear-resistant, oxygen-tight, light and easy to use, sound-damping, detectable after installation. Properties: 5 layers: cross-linked polyethylene, adhesive, aluminium, adhesive, cross-linked polyethylene. thickness of the aluminium: 0,4 mm for D 14 to 20mm.
Delivery and returns
Free delivery in Belgium from €65 excl. VAT
In stock · ships in 3-6 working days
14-day right of return
Free delivery in Belgium from €65 excl. VAT, otherwise €9.95. Delivered in 3-6 working days when in stock. Manufacturer warranty according to the product.
Manufacturer warranty
2 year manufacturer warranty
Minimum 2-year manufacturer warranty + Valtieri after-sales included
