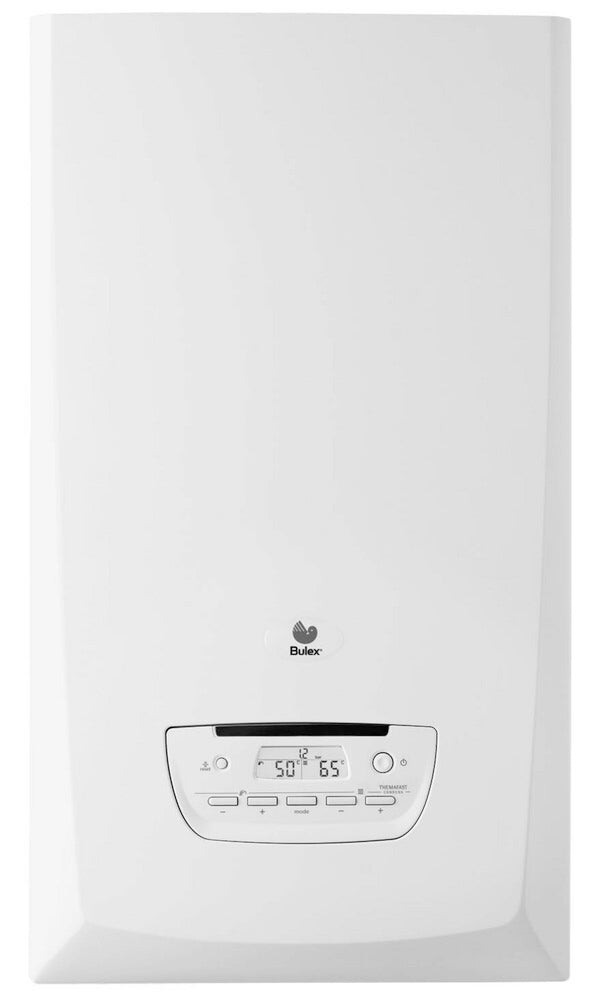

Bulex Thema Condens 25/30 A (I3P-BE) condens gaswandketel combi 24,6 kW propaan

Bulex Thema Condens 25/30 A (I3P-BE) condens gas wall-hung boiler combi 24,6 kW propane

Name: Bulex Thema Condens 25/30 A (I3P-BE) condens gas wall-hung boiler combi 24,6 kW propane
Brand: Bulex
SKU: VM-20054232
Price: 2717.42 EUR
Availability: InStock

Reference VM-20054232 EAN code 3532041775786

€2.717,42 €2.245,80

incl. 21% VAT · €2.245,80 excl. VAT excl. 21% VAT · €2.717,42 incl. VAT

In stock · ships in 3-6 working days

Estimated delivery 3-6 working days after ordering

Total €2.717,42 €2.245,80

Quick pick

Quote for pros

Free delivery in Belgium from €65 excl. VAT
14-day right of return
2 year manufacturer warranty
VAT invoice with every order

Secure payment

Not sure this is the right part?

+32 2 886 10 49

Mon-Fri 8am-5pm

Send us your material list

Specifications

Reference: VM-20054232
Material, heat exchanger: Stainless steel
Closed finish: Yes
Nominal useful output 80-60 °C: 24.5kW
Suitable for low-calorific natural gas: Not suitable
Suitable for propane: Standard factory setting
Suitable for butane: Not suitable
Suitable for methane: Not suitable
Adjustable heating power: No
Conversion kit available: No
On/off control signal: Yes
High/low control signal: No
OpenTherm control signal: No
Control signal 0-10 V: No
High/low burner regulation: No
Modulated burner control: Yes
Minimum setback temperature: 1°C
Minimum working pressure: 0.3bar
Max. operating pressure: 3bar
Energy saver included: No
Maximum upstream gas pressure: 30mbar
Minimum upstream gas pressure: 20mbar
Second outlet connection: No
Nominal power low value, sanitary water: 30.6kW
Nominal power high value, sanitary water: 33.966kW
Faucet base: 1.5l/min
Integrated distribution/filling valve: No
Integrated pump switch: No
Built-in manometer: No
Integrated ambient conditions controller: No
Integrated expansion vessel: No
Integrated overpressure valve: No
Built-in inlet combination: No
Height: 740mm
Depth: 300mm
Width: 418mm
Supply connection: Serrage
Diameter outside of the inlet pipe: 22mm
Return connection: Serrage
Diameter outside of the return pipe: 22mm
Connection, fuel: Serrage
Diameter outside of fuel pipe: 15mm
Condensate connection: Flexible
Diameter outside of condensate pipe: 17mm
SEER (Seasonal Energy Efficiency Ratio) in standard conditions: 93
Energy efficiency of hot water: 84%
Capacity profile: XL
Useful heat emission at nominal heat in high temperature operation (P4): 24.6kW
Useful efficiency at nominal heat in high-temperature operation (n4): 88%
Additional full-load electricity consumption (Elmax): 0.035kW
Heat loss in standby (Pstby): 0.042kW
Additional standby electricity consumption (Psb): 0.003kW
Gas label HR: No
Gaskeur NZ: No
EAN code: 3532041775786

Key features

Height: 740mm
Material, heat exchanger: Stainless steel
Closed finish: Yes
Nominal useful output 80-60 °C: 24.5kW
Suitable for low-calorific natural gas: Not suitable

About this product

Bulex. Thema Condens. 25/30 A. Condensing gas wall-mounted boiler. For propane. Heating and domestic hot water. DHW technology: AquaFast. Heating body, burner and plate heat exchanger in stainless steel. Individual and collective flues. Thermostat connection ON/OFF or eBUS, OpenTherm optional. Large LCD interface. Expansion vessel 8 litres, bypass and pressure relief valve 3 bar. Built-in three-way valve. Built-in weather-compensated control, outdoor sensor optional. Built-in modulating pump control according to temperature. Not supplied with the appliance: connection pipes, mounting plate, connection kit, filling kit, non-return valve and vertical outlet. ErP Ready.
