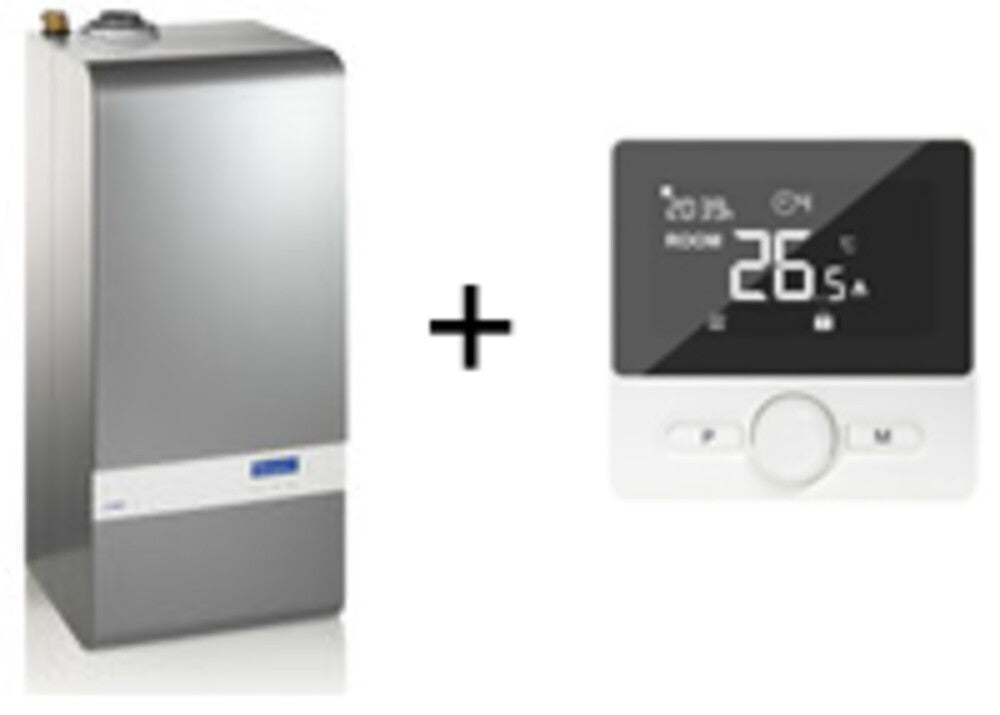

Action Cube DUO 24/35 + gratis 2 thermostaten Cube TH 1025

Action Cube DUO 24/35 + free 2 thermostats Cube TH 1025

Name: Action Cube DUO 24/35 + free 2 thermostats Cube TH 1025
Brand: Cube
SKU: VM-20072918
Price: 3251.71 EUR
Availability: InStock

Reference VM-20072918

€3.251,71 €2.687,36

incl. 21% VAT · €2.687,36 excl. VAT excl. 21% VAT · €3.251,71 incl. VAT

In stock · ships in 3-6 working days

Estimated delivery 3-6 working days after ordering

Total €3.251,71 €2.687,36

Quick pick

Quote for pros

Free delivery in Belgium from €65 excl. VAT
14-day right of return
2 year manufacturer warranty
VAT invoice with every order

Secure payment

Not sure this is the right part?

+32 2 886 10 49

Mon-Fri 8am-5pm

Send us your material list

Specifications

Reference: VM-20072918
Material, heat exchanger: Aluminium
Closed finish: Yes
Open and closed finish: Yes
Condensation: Yes
Nominal output 50-30 °C: 22kW
Nominal useful output 80-60 °C: 20.7kW
Suitable for low-calorific natural gas: Standard factory setting
Suitable for propane: Standard factory setting
Suitable for butane: Not suitable
Suitable for methane: Not suitable
Adjustable heating power: Yes
Ignition flame: No
On/off control signal: Yes
High/low control signal: No
OpenTherm control signal: Yes
Control signal 0-10 V: No
High/low burner regulation: Yes
Modulated burner control: Yes
Maximum temperature of the inlet water (operating temperature): 90°C
Minimum setback temperature: 20°C
Minimum working pressure: 1bar
Max. operating pressure: 3bar
Maximum upstream gas pressure: 35mbar
Minimum upstream gas pressure: 20mbar
Second outlet connection: Yes
Nominal power, sanitary water: 32.1kW
Nominal power high value, sanitary water: 35.7kW
Available hot water network volume at 60 °C: 9.2l/min
Frequency: 50 Hz
Sanitary hot water reservoir: 0.7l
Integrated distribution/filling valve: No
Integrated pump switch: Yes
Built-in manometer: Yes
Integrated ambient conditions controller: Yes
Integrated expansion vessel: No
Integrated overpressure valve: No
Built-in inlet combination: No
Height: 920mm
Depth: 370mm
Width: 400mm
Supply connection: End of thin steel tube
Diameter outside of the inlet pipe: 22mm
Return connection: End of thin steel tube
Diameter outside of the return pipe: 22mm
Connection, fuel: Male thread (metric)
Connection, air duct: Socket
Nominal diameter of the air duct: 100mm
Connection, flue gas discharge: Socket
Nominal diameter of the duct, flue gas discharge: 60mm
Cold drinking water connection: Other
Hot water connection: Other
Condensate connection: Flexible
Diameter outside of condensate pipe: 25mm
Capacity profile: XL

Key features

Height: 920mm
Material, heat exchanger: Aluminium
Closed finish: Yes
Open and closed finish: Yes
Condensation: Yes

About this product

Cube DUO 24/35 + 2 thermostats Cube TH 1025 gratuits
